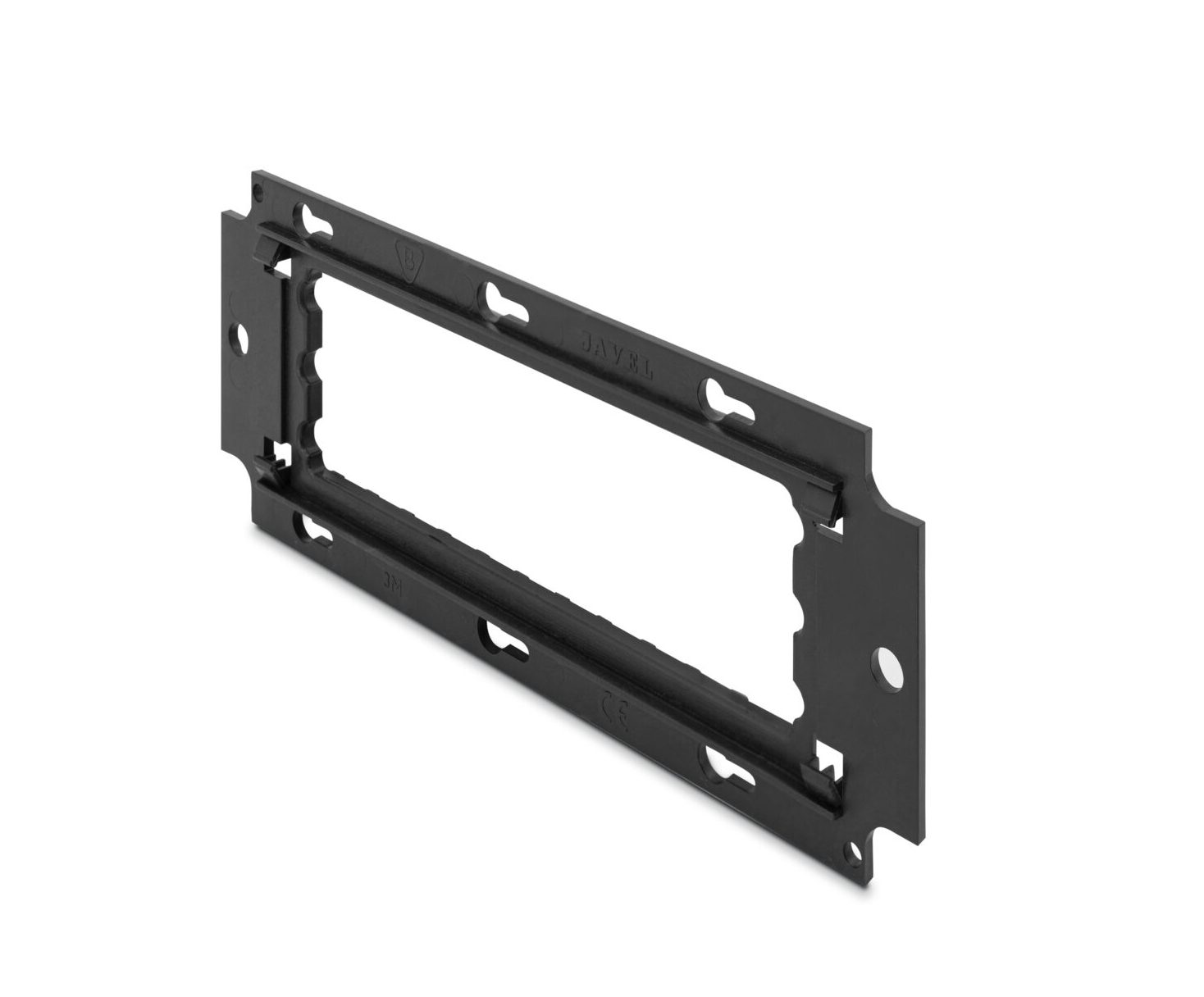

Support – 6-module bracket

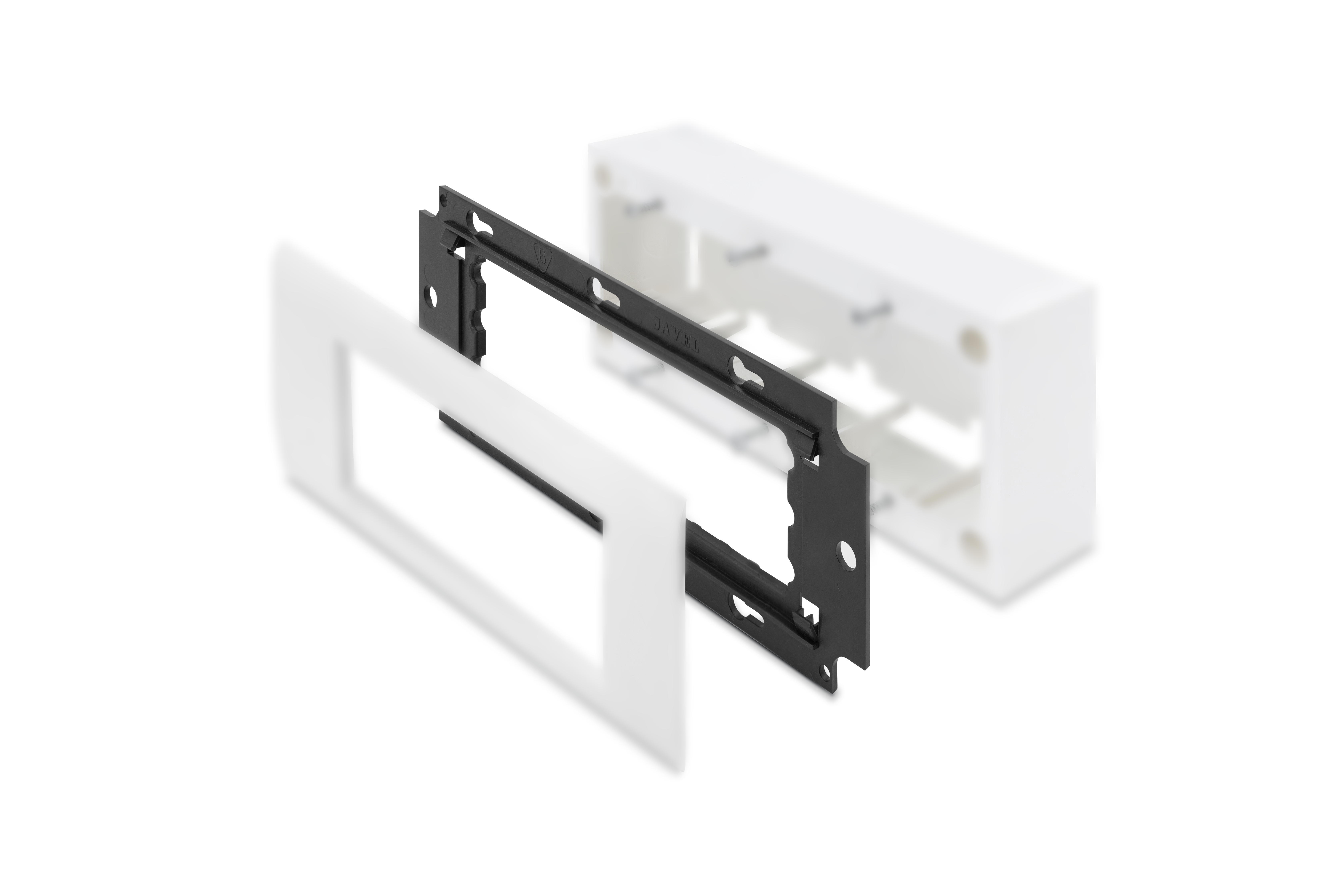

The 6-module support is part of the modular socket system. Made of plastic, it allows the installation of adapters with dimensions of 22.5 x 45 mm and 45 x 45 mm. The modular socket system can also be integrated with electrical outlets. The support enables snap-in insertion of M45 standard elements into surface-mounted enclosures or drywall boxes. The support allows snap-in insertion of M45 standard elements into surface-mounted enclosures or drywall boxes.

Where to buy Downloads

MOSAIC standard compliant
High quality
Black color

MOSAIC, or one standard

The MOSAIC standard is a standardized size of 2×2 inches, or approximately 25×25 mm. Surface-mounted or concealed elements included in the so-called ‘white assembly’, such as LAN, electrical, and multimedia elements like electrical sockets, telecommunications adapters, or multimedia modules, are made in this standard. This standardized size ensures that the adapter will fit most supports mounted in frames as well as in trunking in surface installations.
