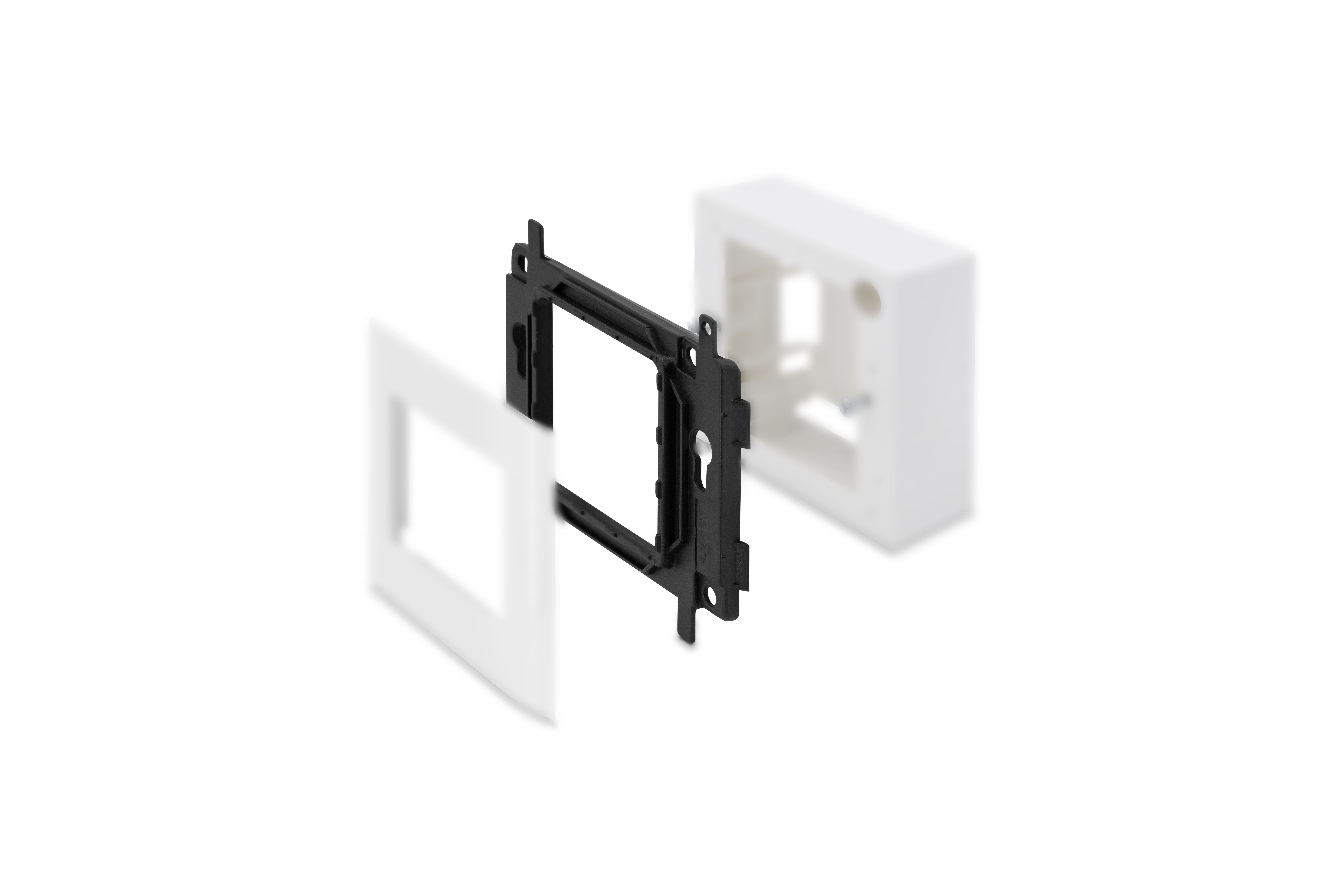

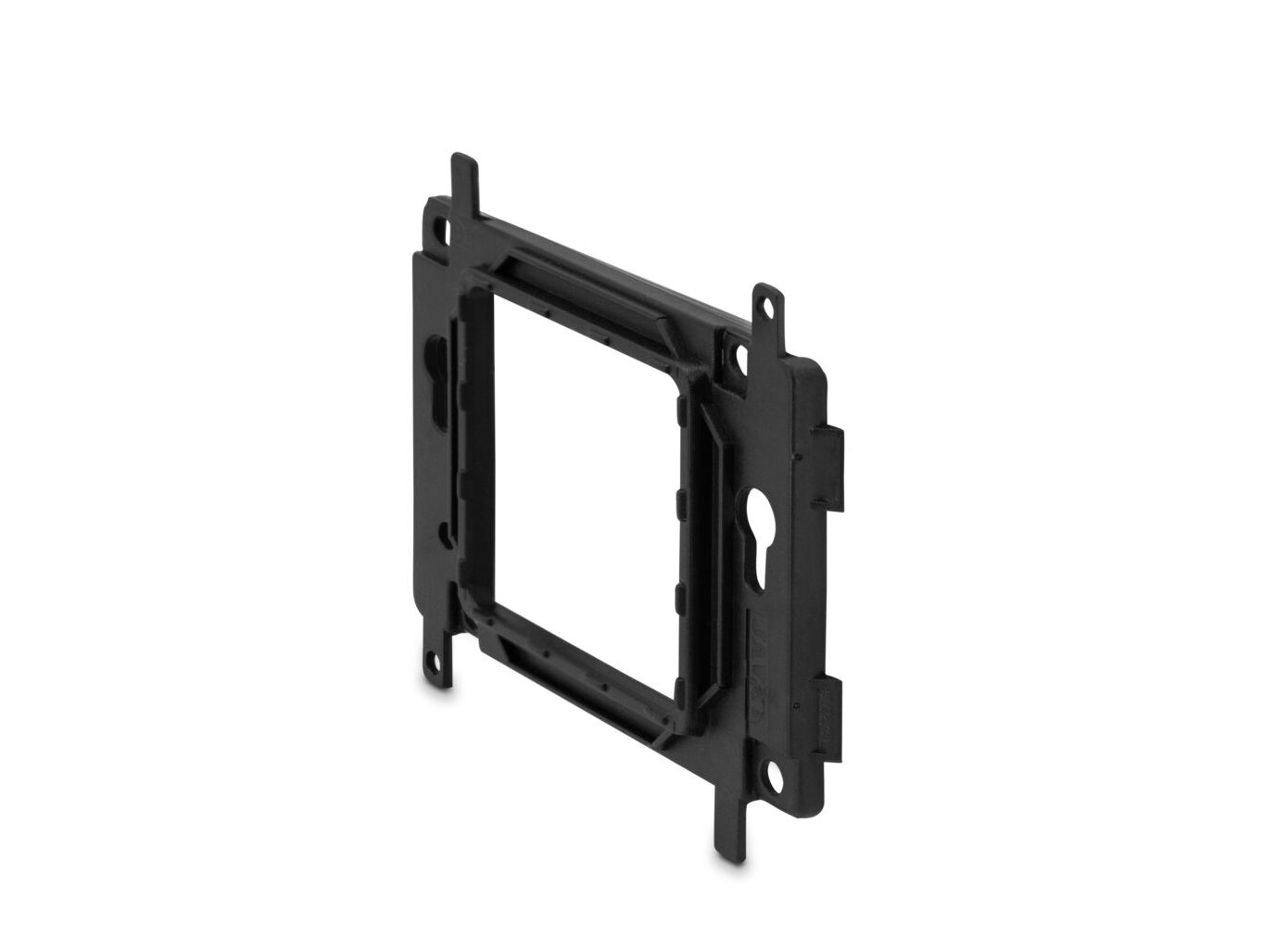

A 2-keystone module support that’s part of a modular outlet system. Made from plastic, it allows for the installation of 22.5 x 45 mm and 45 x 45 mm adapters. The modular outlet system can also be integrated with electrical sockets. The support allows snap-in insertion of M45 standard elements into surface-mounted enclosures or drywall boxes.
MOSAIC standard compliant
High quality
Black color
MOSAIC, or one standard
The MOSAIC standard is a standardized size of 2×2 inches, or approximately 25×25 mm. Surface-mounted or concealed elements included in the so-called ‘white assembly’, such as LAN, electrical, and multimedia elements like electrical sockets, telecommunications adapters, or multimedia modules, are made in this standard. This standardized size ensures that the adapter will fit most supports mounted in frames as well as in trunking in surface installations.
|
Color |
black
|
|
|
Operating temperature |
- 5 °C/ + 45°C
|
|
|
Mounting hole dimension |
45 x 45 mm (1M)
|
|
|
Material |
ABS plastic
|
