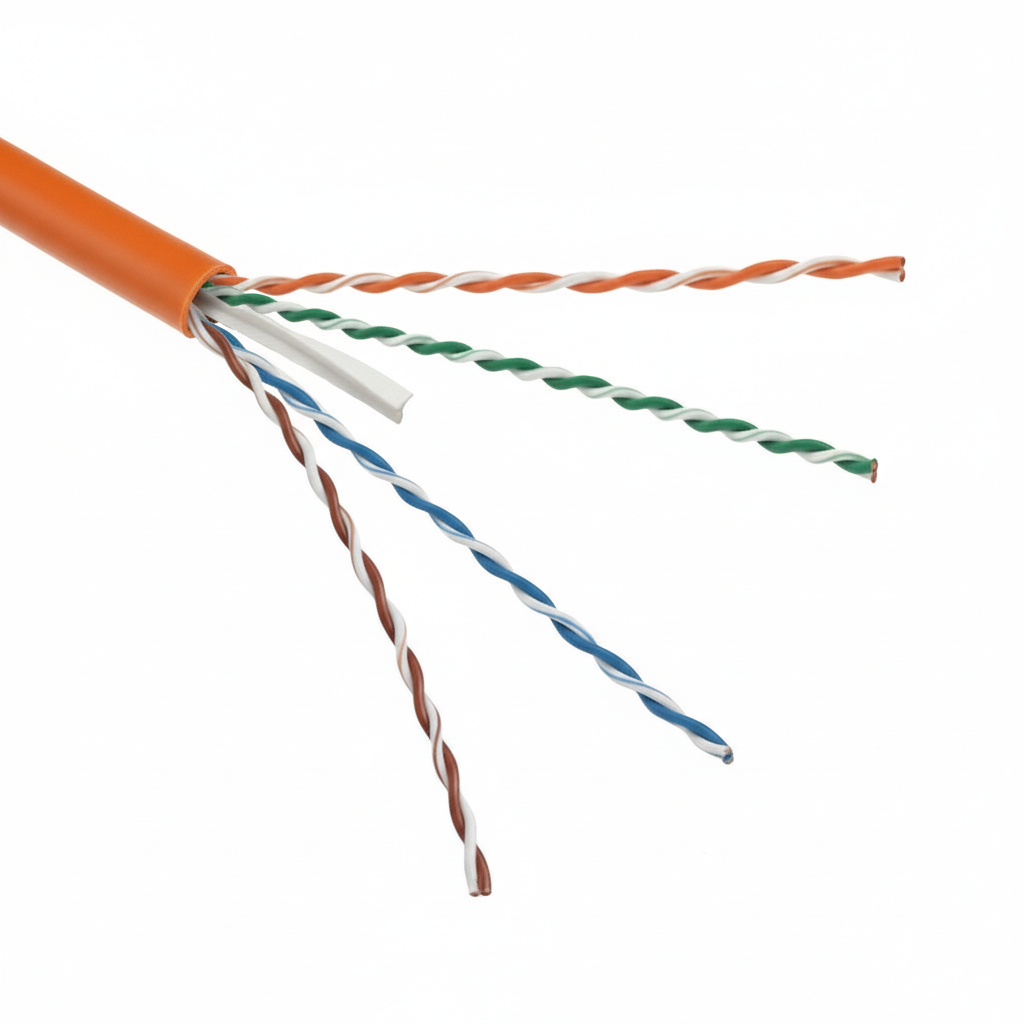

The securityNET installation twisted pair cable is designed to connect multimedia distribution points to user connection points. The unshielded U/UTP cable is suitable for installation in computer networks, telephone systems, CCTV, and other applications where electromagnetic interference is not a concern. It has an LSZH Cca outer jacket and complies with the structural cabling standards ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.
Tested and proven quality
Optimal choice for indoor applications
Wide range of applications
Resistant to damage
A dependable network you can trust

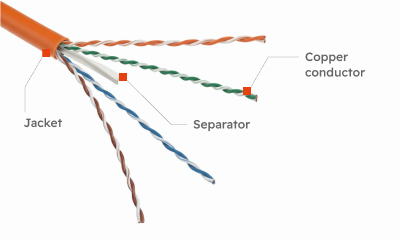

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.
Low smoke, zero halogen (LSZH) jacket for enhanced safety
Compliant with EU CPR regulations, our LSZH (Low Smoke Zero Halogen) cables offer enhanced safety by minimizing fire hazards and toxic emissions. In the event of a fire, these cables significantly reduce the spread of flames and generate minimal smoke and harmful fumes, protecting building occupants and facilitating safe evacuation. securityNET provides a comprehensive range of LSZH cables, designed to meet the specific requirements of your project, ensuring both safety and compliance.
|
Outer diameter |
6,4mm
|
|
Category/class |
6A (Ea class)
|
|
Shielding |
U/UTP
|
|
Copper conductor thickness/AWG |
0,56mm/AWG23
|
|
Wires |
solid wire
|
|
Conductor material |
100% copper
|
|
Conductor insulation |
HDPE 1,02mm
|
|
Coating thickness |
0,55mm
|
|
Outer sheath |
LSZH
|
|
CPR class |
Cca
|
|

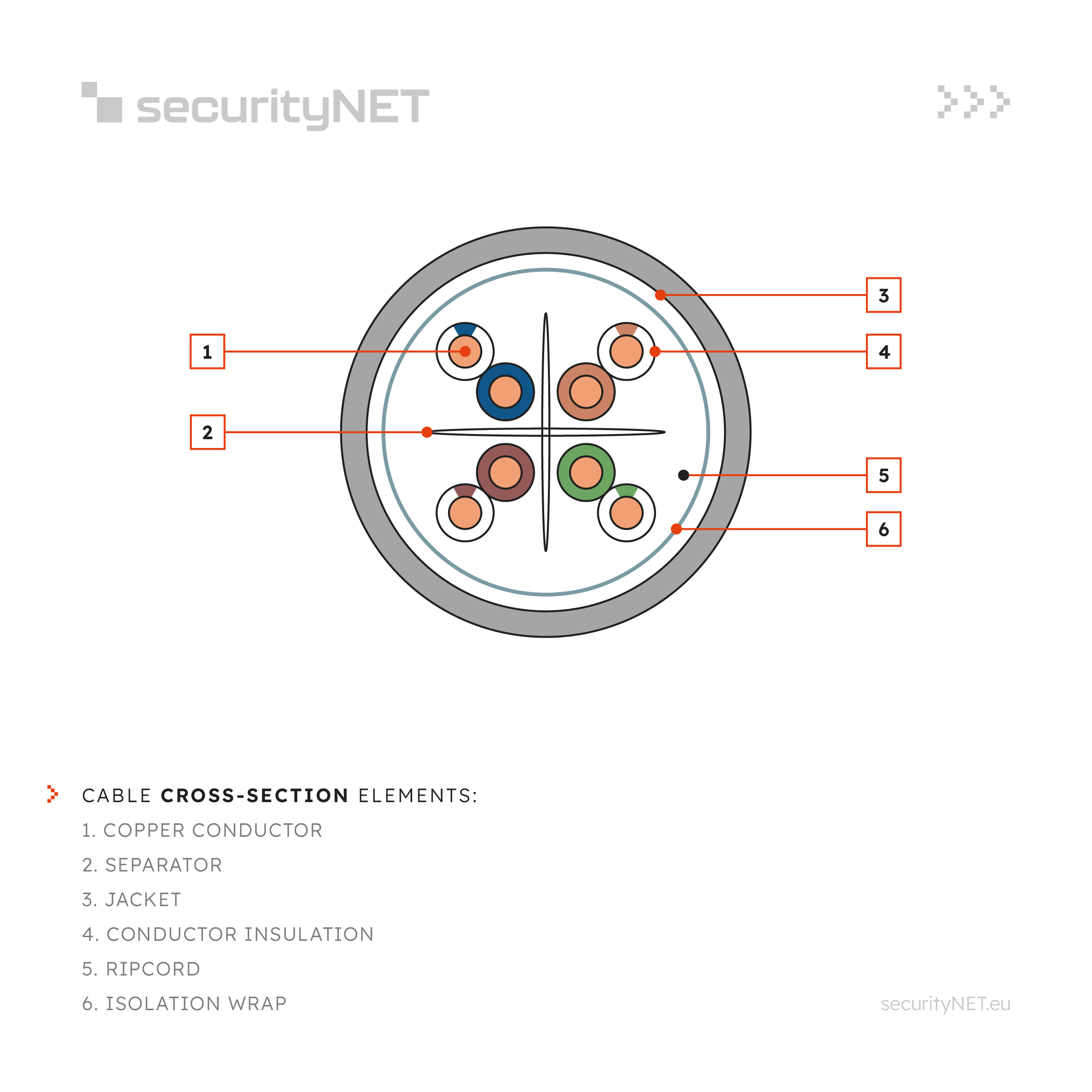

Cable construction |
4x2
|
|
Bend radius at installation |
52mm
|
|
Impedance |
100Ω
|
|
Delay Skew |
≤45
|
|
Nominal propagation velocity (NVP) |
69%
|
|
Linear Resistance (max.) |
9,5 (Ω/100m)
|
|
Pair separator |
yes
|
|
Operating temperature |
from -20°C to 60°C
|
|
Installation temperature |
from -5°C to 60°C
|
|
Quantity per package |
500m
|
|
Insulation color |
RAL 2004
|
|
RoHS |
yes
|
