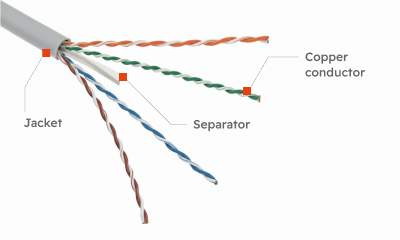

securityNET U/UTP Category 6 PVC cable 305m

The securityNET installation twisted pair cable is designed to connect multimedia distribution points to user connection points. The unshielded U/UTP cable is suitable for installation in computer networks, telephone systems, CCTV, and other applications where electromagnetic interference is not a concern. It has a PVC outer jacket and complies with the structural cabling standards ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.

Where to buy Downloads
securityNET U/UTP Category 6 PVC cable 305m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

securityNET U/UTP Category 6 PVC cable 305m

Wide range of applications

Category 6 U/UTP cable is the best choice for indoor applications where 10 Gb/s transfer is required. It’s suitable for networks not exposed to electromagnetic interference, such as common computer and telephone installations. Due to its high quality and competetive price, it’s a popular choice among experienced installers.

Technical specifications

Outer diameter

Outer diameter
5,8mm
Category/class

Category/class
6 (E class)
Shielding

Shielding
U/UTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG
0,55mm/AWG23
Wires

Wires
solid wire
Conductor material

Conductor material
100% copper
Conductor insulation

Conductor insulation
HDPE, conductor diameter 0.95mm
Coating thickness

Coating thickness
0,55mm
Outer sheath

Outer sheath
PVC
CPR class

CPR class
Eca
Cable construction

Cable construction
4x2
Bend radius at installation

Bend radius at installation
47mm
Impedance

Impedance
100Ω
Delay Skew

Delay Skew
≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)
68%
Linear Resistance (max.)

Linear Resistance (max.)
9,5 (Ω/100m)
Pair separator

Pair separator
yes
Operating temperature

Operating temperature
from -20°C to 60°C
Installation temperature

Installation temperature
from 0°C to 50°C
Quantity per package

Quantity per package
305m
Insulation color

Insulation color
RAL 7035
RoHS

RoHS
yes
