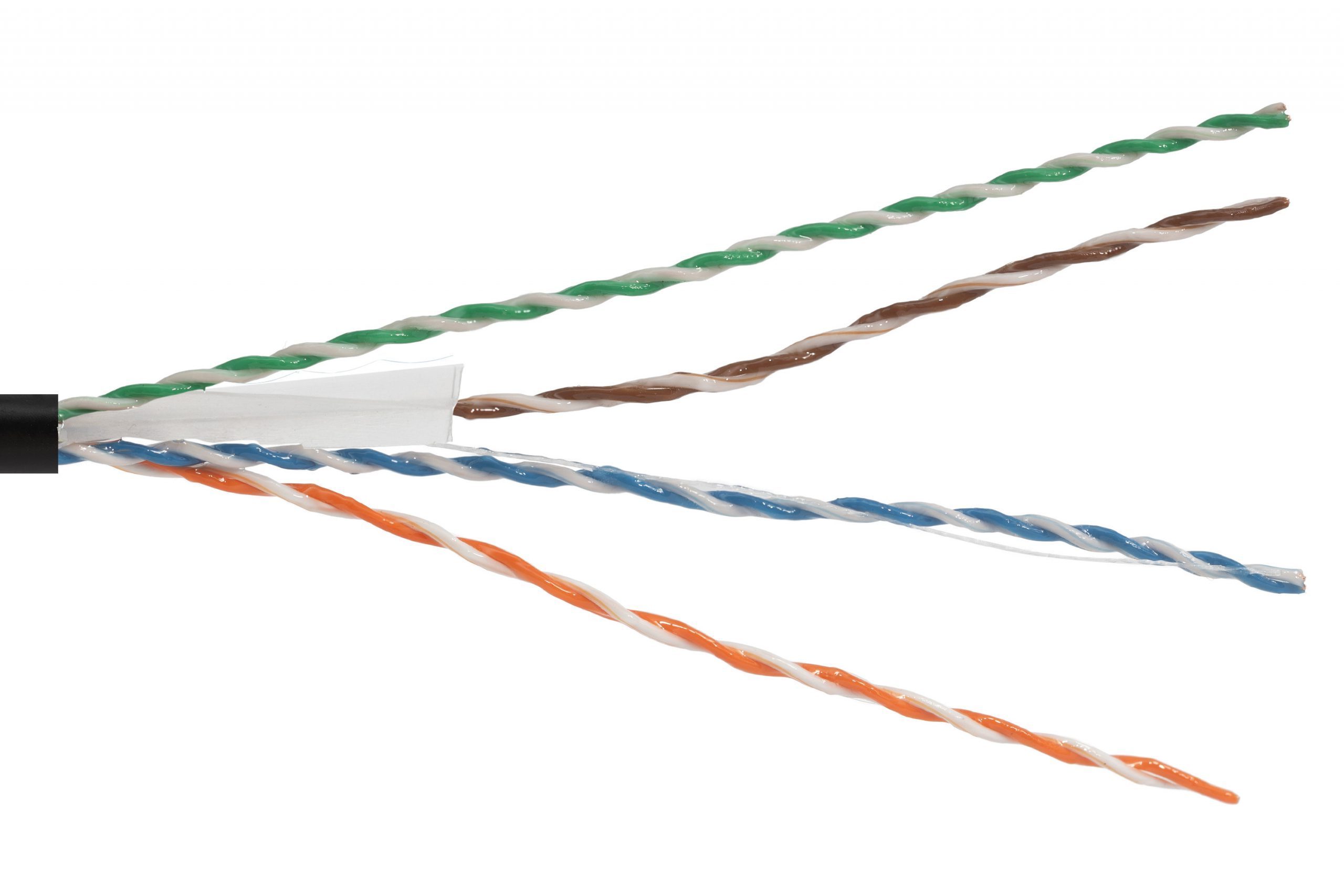

securityNET U/UTP Category 6 PE outdoor gel-filled cable 500m

The securityNET installation twisted pair cable is designed to connect multimedia distribution points to user connection points. The unshielded U/UTP cable is suitable for installation in computer networks, telephone systems, CCTV, and other applications where electromagnetic interference is not a concern. It has a PE outer jacket and complies with the structural cabling standards ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.

securityNET U/UTP Category 6 PE outdoor gel-filled cable 500m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

securityNET U/UTP Category 6 PE outdoor gel-filled cable 500m

Polyethylene jacket for outdoor installation

The PE sheath has been engineered for outdoor cable installations, providing protection against UV radiation, temperature extremes, and high humidity. The securityNET cables, with their distinctive black color, offer superior mechanical durability compared to standard installation cables. The gel filling provides protection for the cable when buried underground.

Technical specifications

Outer diameter

Outer diameter

7,1
Category/class

Category/class

6 (E class)
Shielding

Shielding

U/UTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,565mm/AWG23
Wires

Wires

solid wire
Conductor material

Conductor material

100% copper
Conductor insulation

Conductor insulation

HDPE 1,12mm
Coating thickness

Coating thickness

0,6mm
Outer sheath

Outer sheath

PE
CPR class

CPR class

Fca
Cable construction

Cable construction

4x2
Bend radius at installation

Bend radius at installation

57mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

65%
Linear Resistance (max.)

Linear Resistance (max.)

9,5 (Ω/100m)
Pair separator

Pair separator

yes
Operating temperature

Operating temperature

from -30°C to 60°C
Installation temperature

Installation temperature

from -10°C to 70°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 9005
RoHS

RoHS

yes
