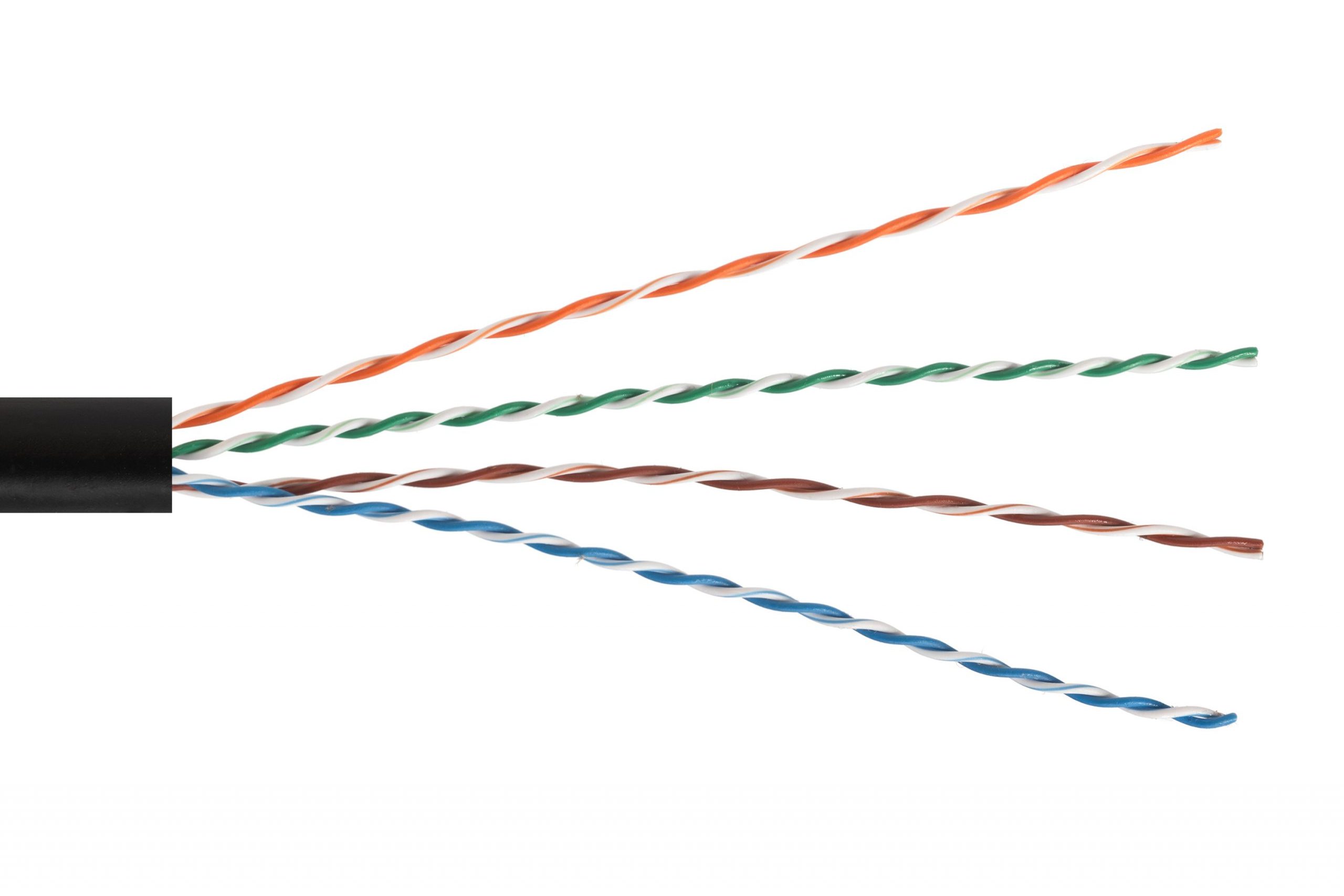

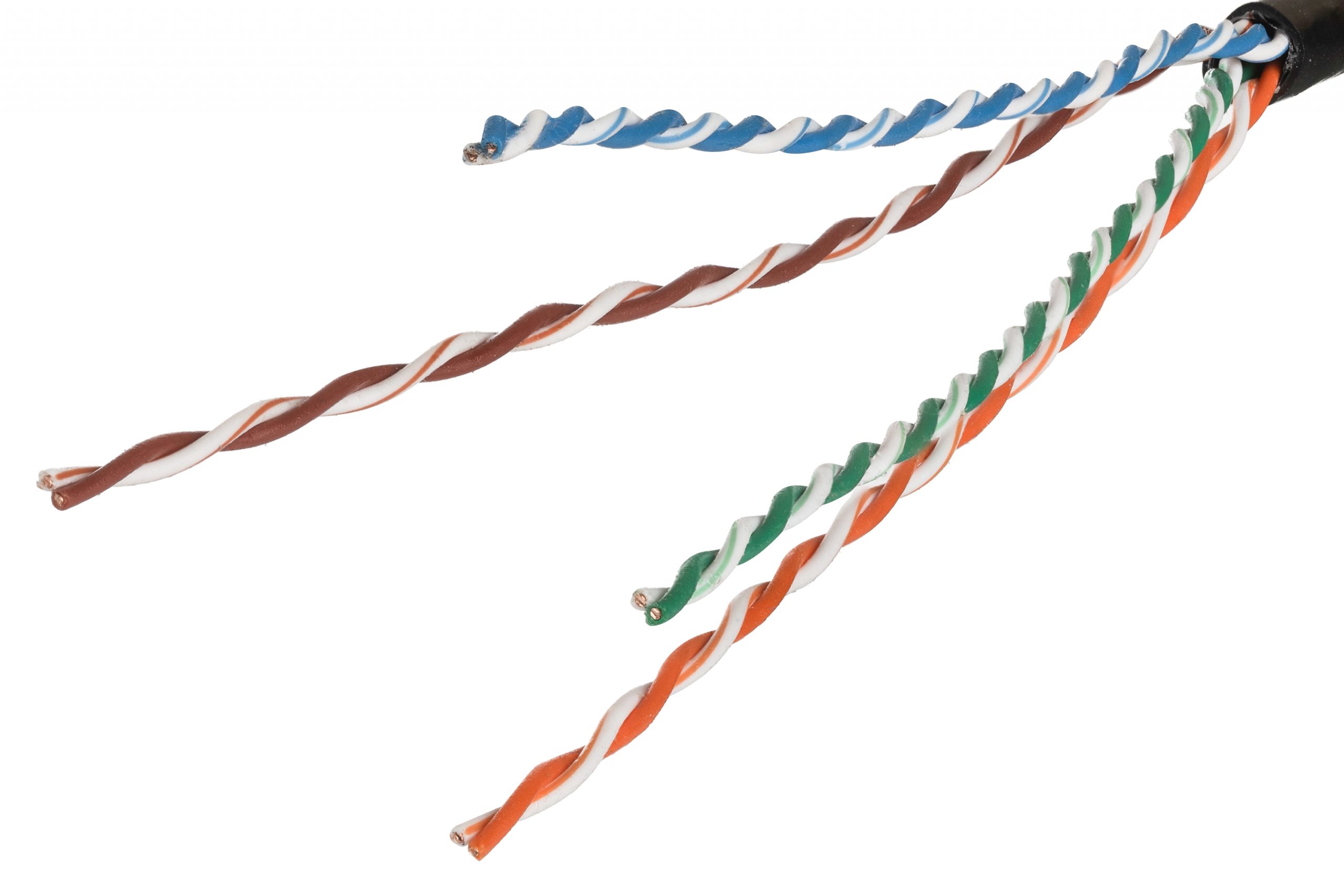

securityNET U/UTP cable Category 5e PE outdoor dry 500m

The securityNET installation twisted pair cable is specifically designed to link multimedia signal distribution points with user connection points. The unshielded UTP cable is ideal for environments not prone to electromagnetic interference, making it suitable for computer, telephone, and CCTV networks. Its PE outer jacket ensures protection from environmental factors. The cable adheres to the strict standards outlined in ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2 for structured cabling.

securityNET U/UTP cable Category 5e PE outdoor dry 500m

A dependable network you can trust

Experience unmatched durability with the securityNET twisted pair cable. Crafted from premium copper, it ensures long-lasting, reliable connections. Rigorously tested over 90 meters using a Fluke Networks DSX-8000, this cable is built to withstand the test of time. Ideal for demanding applications requiring superior performance.

securityNET U/UTP cable Category 5e PE outdoor dry 500m

PE jacket designed for external environments

Engineered for outdoor environments, the PE jacket protects cables from harsh conditions such as UV rays, extreme temperatures, and high humidity. securityNET cables, with their robust black jacket, offer superior mechanical protection compared to standard cables. The fill-less design makes them ideal for above-ground installations.

Technical specifications

Outer diameter

Outer diameter

5,2mm
Category/class

Category/class

5e (class D)
Shielding

Shielding

U/UTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,5mm/AWG24
Wires

Wires

solid wire
Conductor material

Conductor material

100% copper
Conductor insulation

Conductor insulation

HDPE, conductor diameter 0.88mm
Coating thickness

Coating thickness

0,55mm
Outer sheath

Outer sheath

PE
CPR class

CPR class

Fca

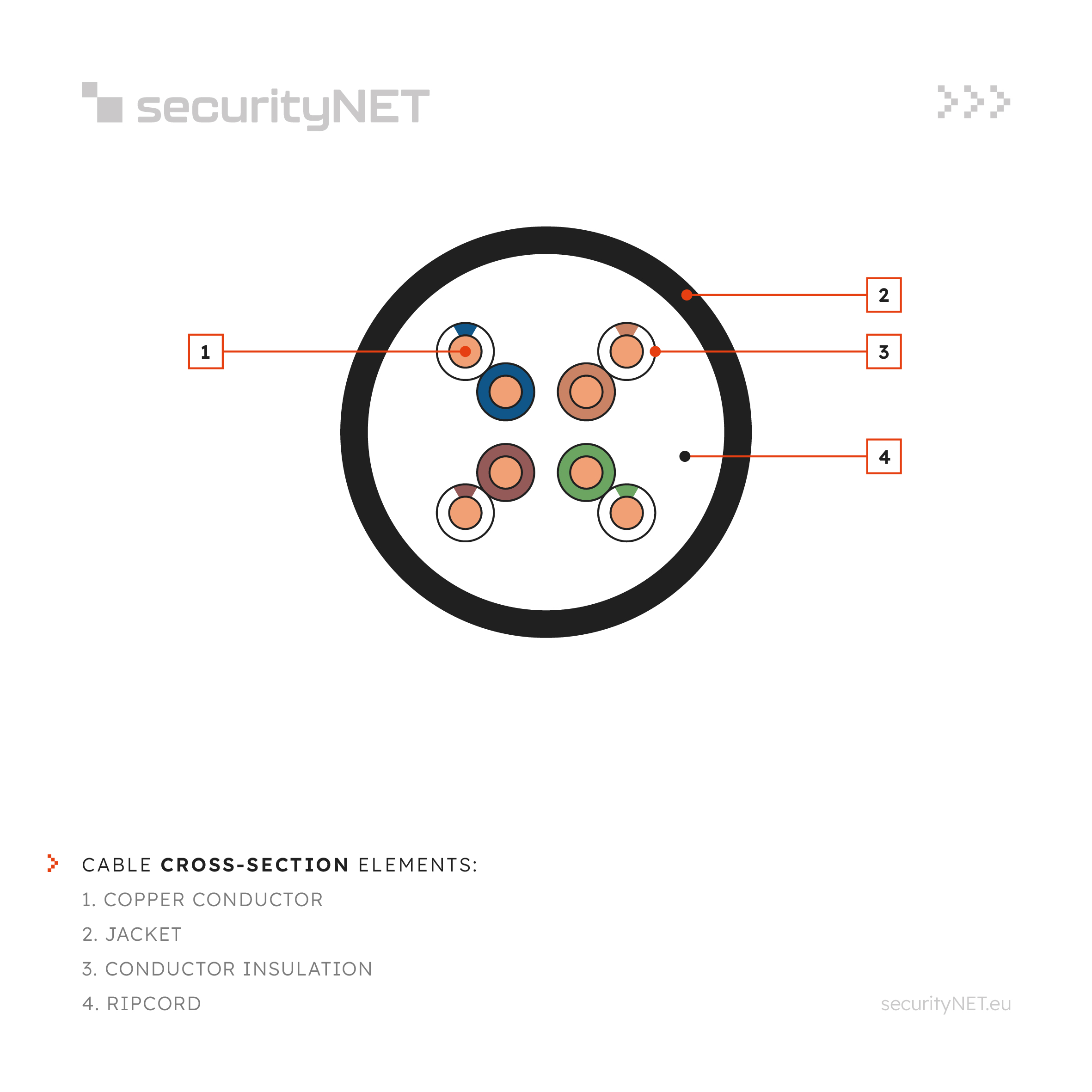

Cable construction

Cable construction

4x2
Bend radius at installation

Bend radius at installation

42mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

68%
Linear Resistance (max.)

Linear Resistance (max.)

9,5 (Ω/100m)
Pair separator

Pair separator

no
Operating temperature

Operating temperature

from -30°C to 60°C
Installation temperature

Installation temperature

from -10°C to 70°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 9005
RoHS

RoHS

yes
