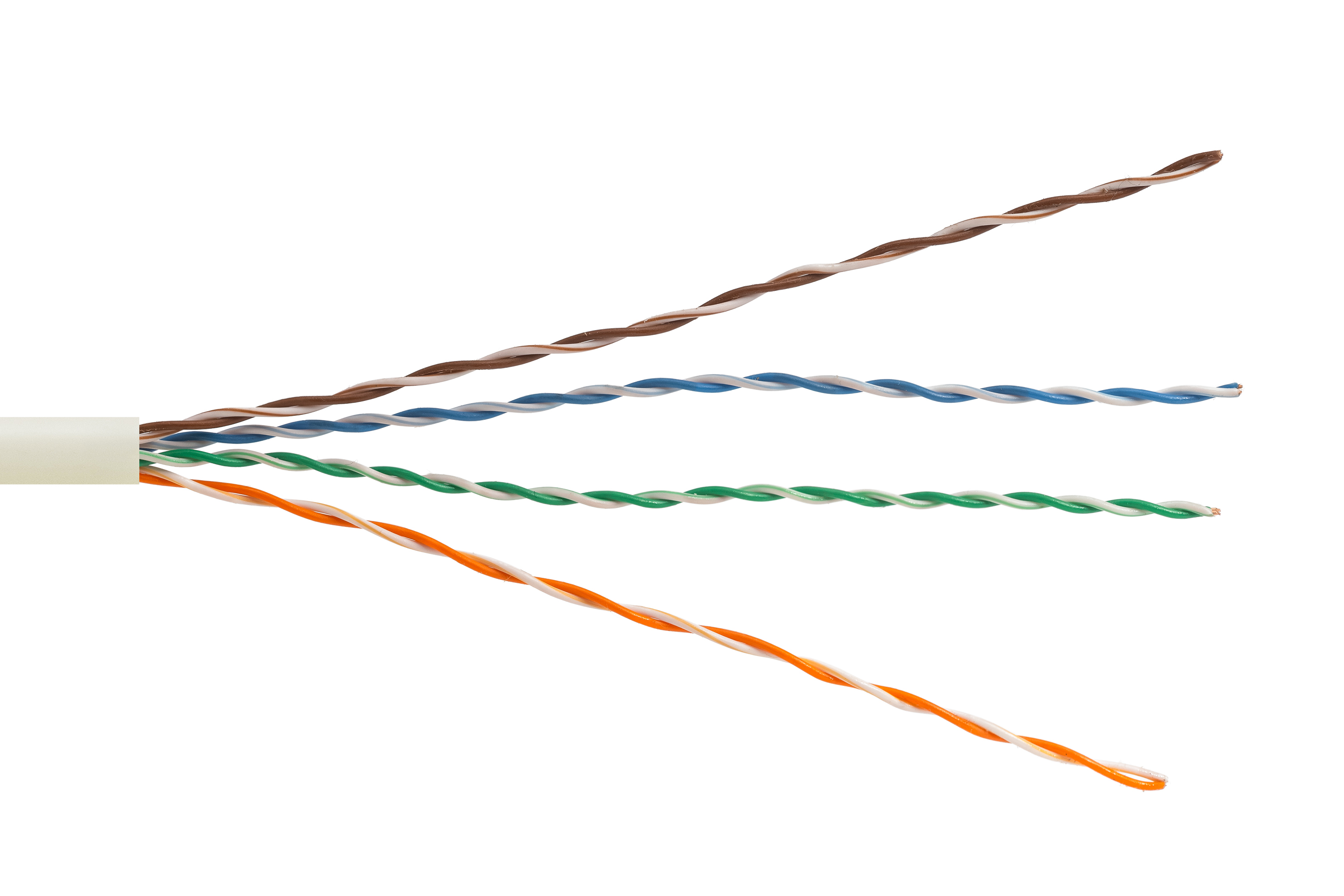

securityNET U/UTP 200MHz Category 5e LSZH Dca cable 305m

securityNET installation twisted pair cable is designed for connections between distribution points of multimedia signals and user connection points. The U/UTP (unshielded twisted pair) cable is suitable for installation in computer networks, telephone systems, CCTV systems, etc., which are not exposed to electromagnetic interference. It has an LSZH B2ca outer jacket. The cable meets the requirements specified by the structural cabling standards: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.

A dependable network you can trust

SecurityNET twisted pair cable is made of the highest quality copper, making it an excellent choice for long-lasting connections. It has undergone rigorous tests over a 90-meter distance using a Fluke Networks DSX-8000 tester. If you’re looking for exceptionally durable materials, this is the perfect choice.

LSZH jacket for enhanced safety

The LSZH jacket ensures enhanced safety by being flame resistant, non-toxic, and low-smoke. To comply with European regulations since 2017, securityNET offers a comprehensive range of cables classified according to CPR requirements, providing peace of mind for your installations.

Technical specifications

	Outer diameter	5,0mm
	Category/class	5e (class D)
	Shielding	U/UTP
	Grubość żyły miedzianej/AWG	0,51mm/AWG24
	Wires	solid wire
	Conductor material	100% copper
	Conductor insulation	HDPE, conductor diameter 0.87mm
	Coating thickness	0,5mm
	Outer sheath	LSZH
	CPR class	Dca
	Cable construction	4x2
	Bend radius at installation	40mm
	Impedance	100Ω
	Delay Skew	≤45
	Nominal propagation velocity (NVP)	69%
	Linear resistance (max.)	9,5 (Ω/100m)
	Separator	no
	Operating temperature	from -20°C to 60°C
	Installation temperature	from 0°C to 50°C
	Quantity per package	305m
	Insulation color	RAL 9010
	RoHS	yes
