securityNET S/FTP Category 7A LSZH Dca cable 500m

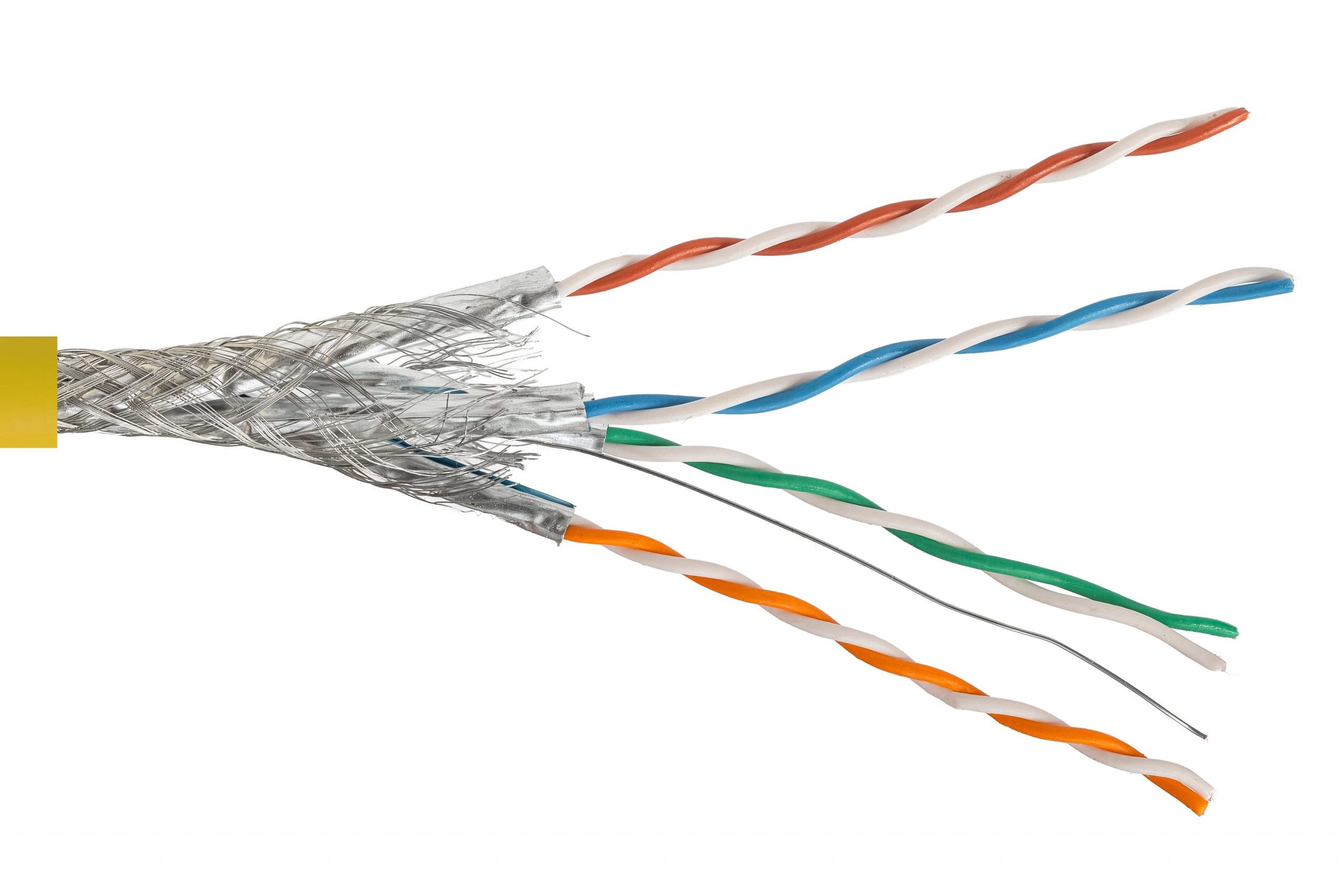

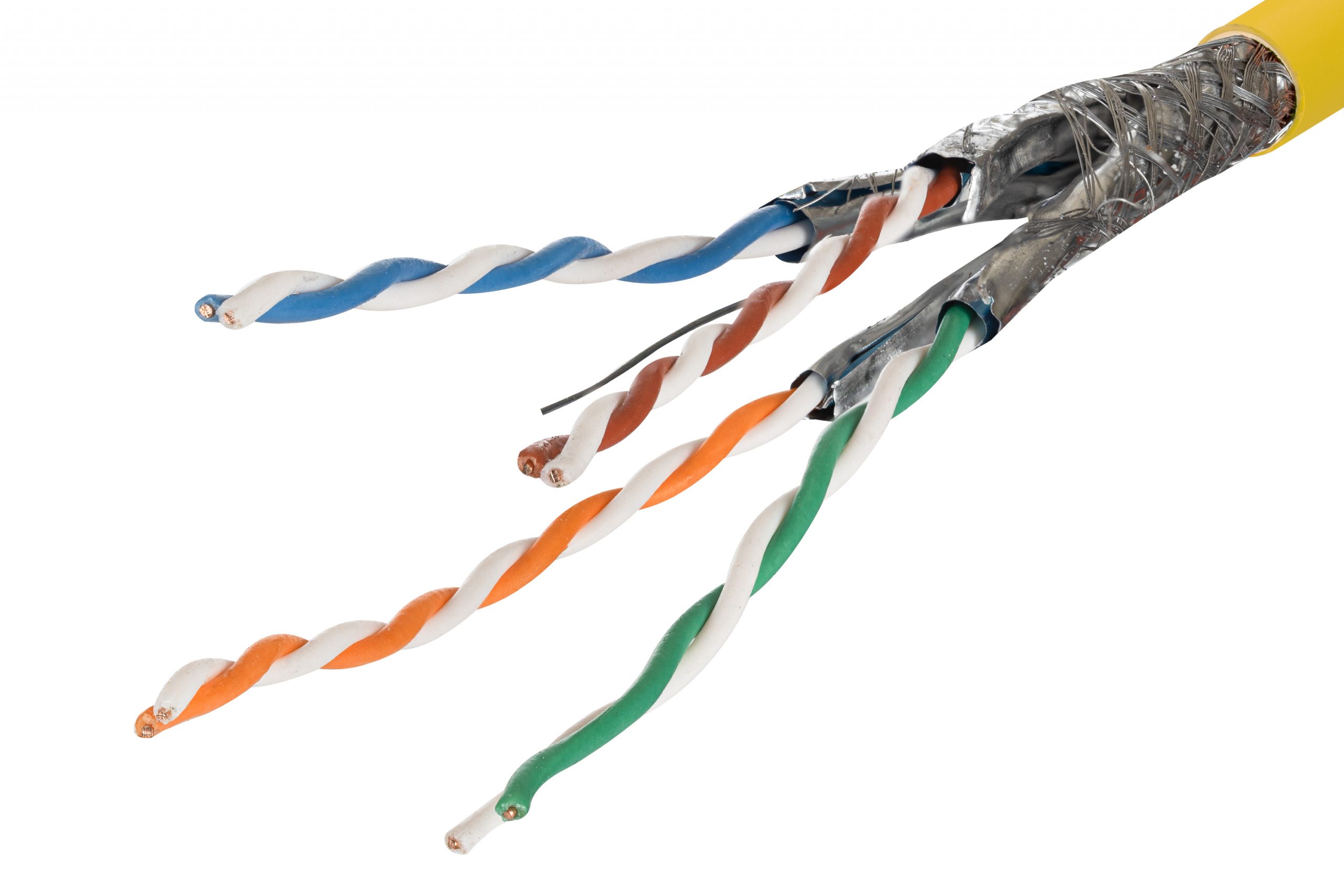

The securityNET installation twisted pair cable is designed to connect multimedia distribution points to user connection points. The shielded S/FTP twisted pair cable is indispensable for computer networks, telephone systems, CCTV, and other applications susceptible to electromagnetic interference. It features an LSZH Dca outer jacket and meets the requirements of structural cabling standards: ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.

securityNET S/FTP Category 7A LSZH Dca cable 500m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

securityNET S/FTP Category 7A LSZH Dca cable 500m

Low smoke, zero halogen (LSZH) jacket for enhanced safety.

Compliant with EU CPR regulations, our LSZH (Low Smoke Zero Halogen) cables offer enhanced safety by minimizing fire hazards and toxic emissions. In the event of a fire, these cables significantly reduce the spread of flames and generate minimal smoke and harmful fumes, protecting building occupants and facilitating safe evacuation. securityNET provides a comprehensive range of LSZH cables, designed to meet the specific requirements of your project, ensuring both safety and compliance.

Technical specifications

Outer diameter

Outer diameter

7,6mm
Category/class

Category/class

7A (Fa calss)
Shielding

Shielding

S/FTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,565mm/AWG23
Wires

Wires

solid wire
Conductor material

Conductor material

100% copper
Conductor insulation

Conductor insulation

PE 1,33mm
Coating thickness

Coating thickness

0,55mm
Outer sheath

Outer sheath

LSZH
CPR class

CPR class

Dca

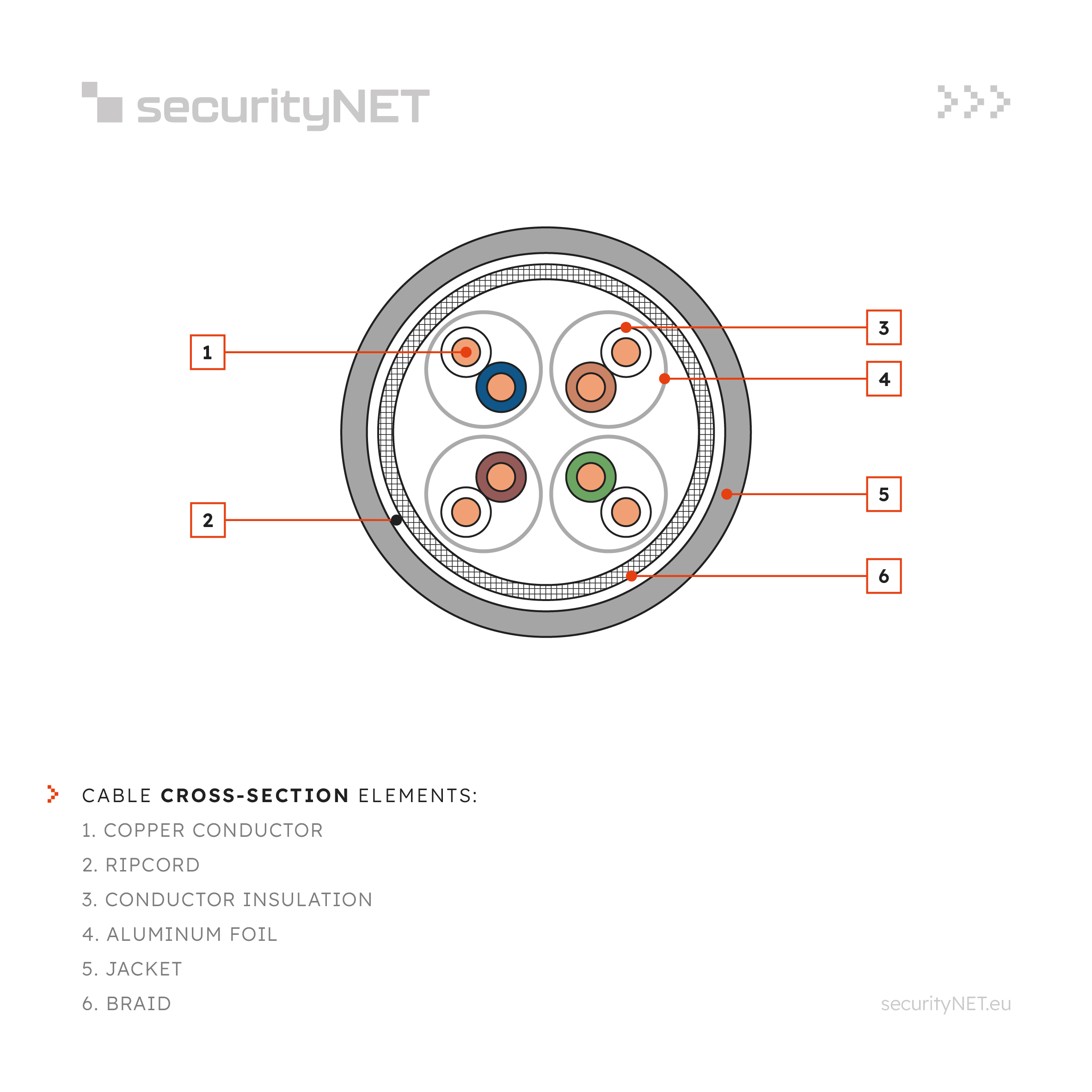

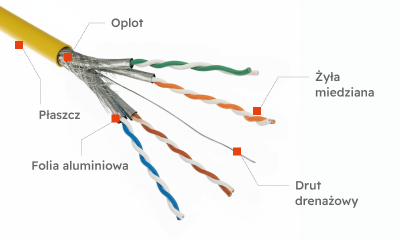

Cable construction

Cable construction

4x2
Bendi radius at installation

Bendi radius at installation

60mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤25
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

74%
Linear Resistance (max.)

Linear Resistance (max.)

9,38 (Ω/100m)
Pair separator

Pair separator

no
Operating temperature

Operating temperature

from -20°C to 70°C
Installation temperature

Installation temperature

from -5°C to 70°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 1021
RoHS

RoHS

yes
