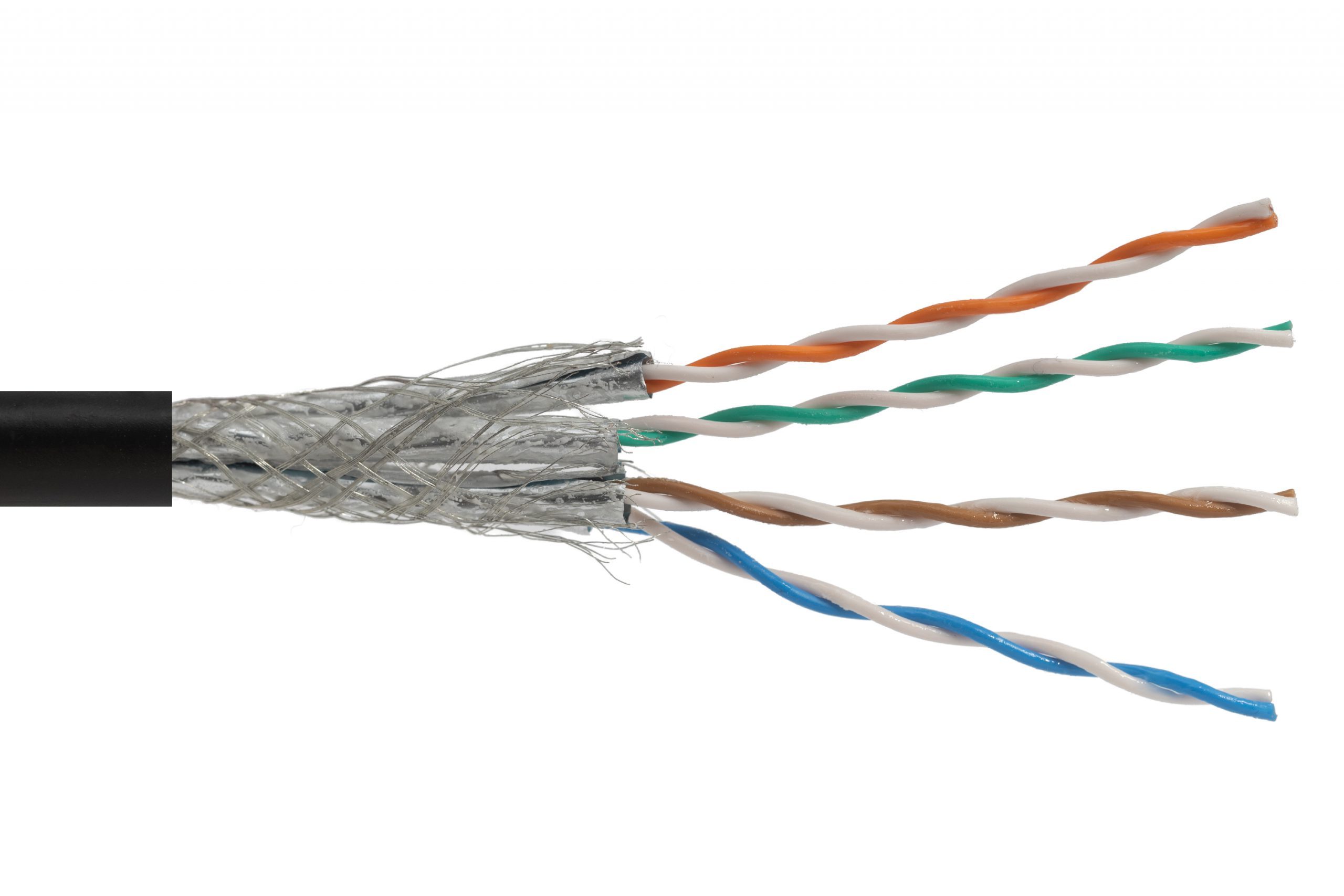

securityNET S/FTP category 7 PE outdoor gel-filled cable 500m

The securityNET S/FTP Category 7 gel-filled outdoor cable is a high-performance solution designed for demanding outdoor installations. Its specialized PE jacket and gel filling provide superior protection against moisture and mechanical damage, ensuring reliable operation in harsh environments. This cable is ideal for applications requiring high bandwidth and stable connections.

securityNET S/FTP category 7 PE outdoor gel-filled cable 500m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

securityNET S/FTP category 7 PE outdoor gel-filled cable 500m

Polyethylene outer sheath, suitable for outdoor use

The polyethylene (PE) jacket is designed for outdoor installations, providing superior resistance to UV radiation, extreme temperatures, and high humidity. securityNET cables, distinguished by their black color, offer enhanced mechanical protection compared to standard installation cables. The gel-filled construction makes them suitable for direct burial (conduit recommended).

Technical specifications

Outer diameter

Outer diameter

7,8mm
Category/class

Category/class

7 (class F)
Shielding

Shielding

S/FTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,57/AWG23
Wires

Wires

solid wire
Conductor material

Conductor material

100% copper
Conductor insulation

Conductor insulation

PE 1,35
Coating thickness

Coating thickness

0,55
Outer sheath

Outer sheath

PE
CPR class

CPR class

Fca
Cable construction

Cable construction

4x2
Bend radius at installation

Bend radius at installation

78mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

74%
Linear Resistance (max.)

Linear Resistance (max.)

9,5 (Ω/100m)
Pair separator

Pair separator

no
Operating temperature

Operating temperature

from -20°C to 60°C
Installation temperature

Installation temperature

from 0°C to 50°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 9005
RoHS

RoHS

yes
