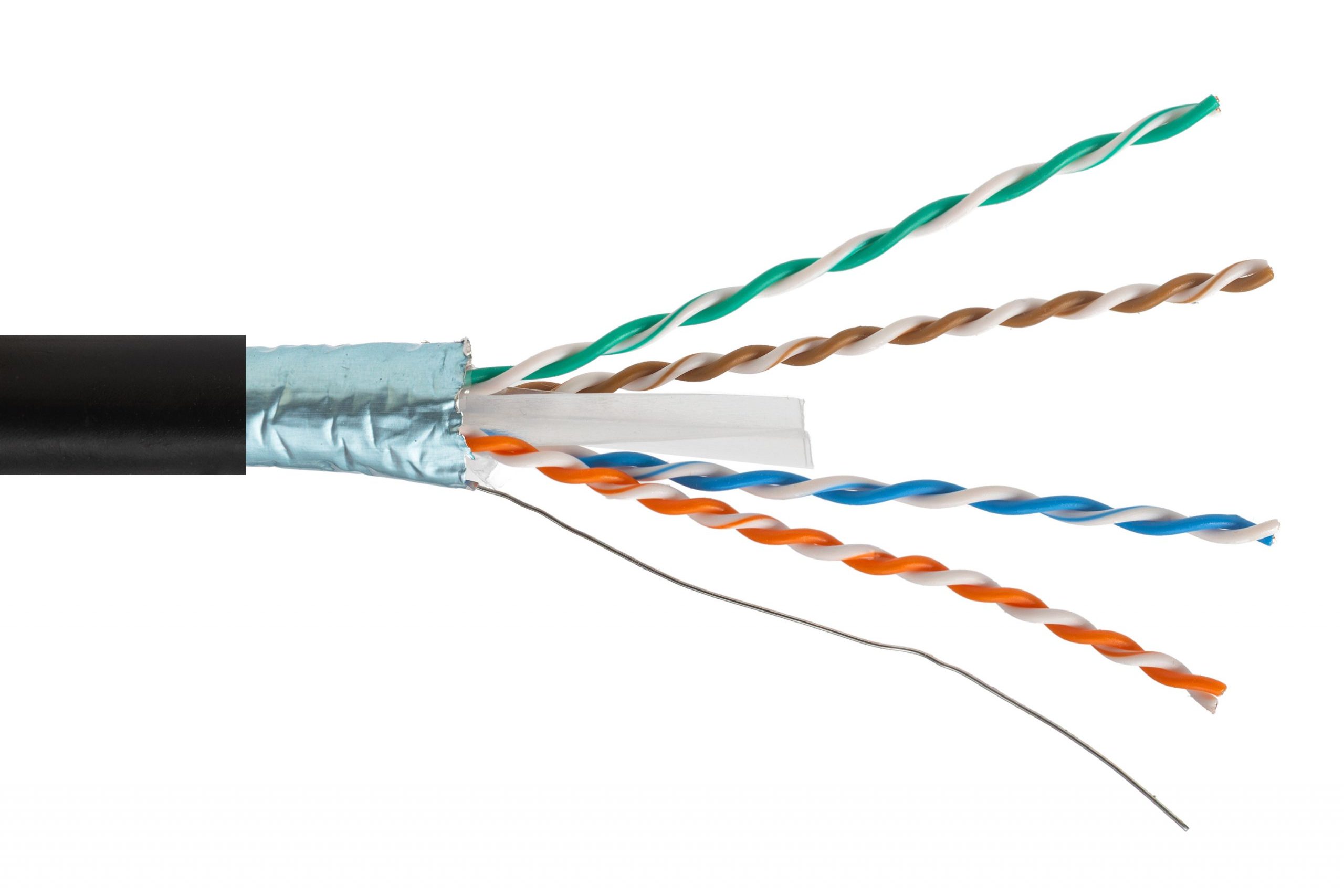

securityNET F/UTP Category 6A PE outdoor gel-filled cable 500m

The securityNET installation twisted pair cable is designed to connect multimedia distribution points to user connection points. The shielded F/UTP twisted pair cable is ideal for installation in computer networks, telephone systems, CCTV, and other applications susceptible to electromagnetic interference. It features a PE outer jacket that provides protection from damage caused by external conditions. The cable meets the requirements of structural cabling standards: ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.

securityNET F/UTP Category 6A PE outdoor gel-filled cable 500m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

securityNET F/UTP Category 6A PE outdoor gel-filled cable 500m

Polyethylene jacket for outdoor installation

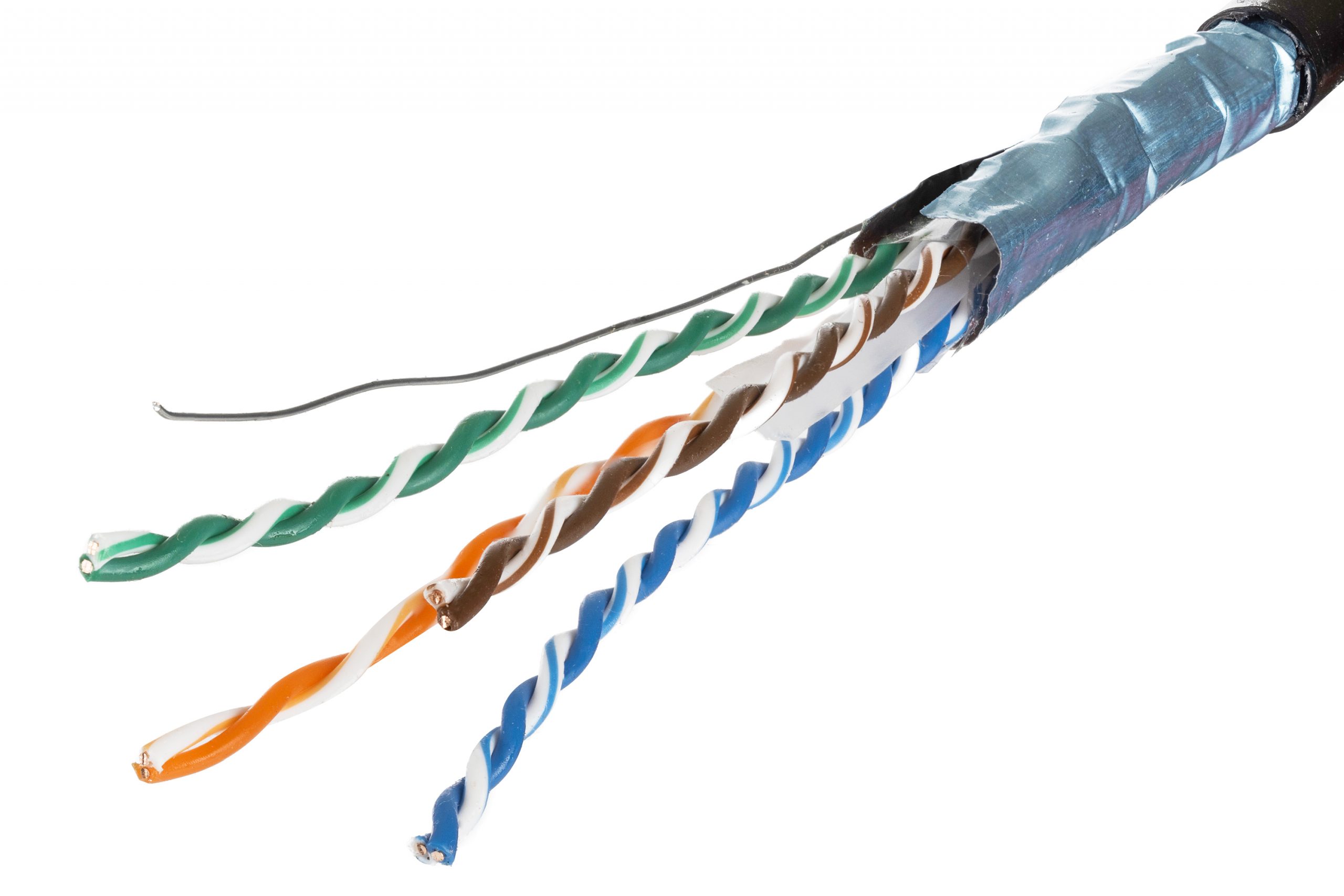

The PE (polyethylene) jacket has been designed for outdoor cable installations, providing protection against UV radiation, extreme temperatures, and high humidity. securityNET cables, with their distinctive black color, offer enhanced mechanical durability compared to standard installation cables. The gel filling indicates that the cable is suitable for direct burial.

Technical specifications

Outer diameter

Outer diameter

7,4mm
Category/class

Category/class

6A (Ea class)
Shielding

Shielding

F/UTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,56mm/AWG23
Wires

Wires

solid wire
Conductor material

Conductor material

100% copper
Conductor insulation

Conductor insulation

PE 1,12mm
Coating thickness

Coating thickness

0,55mm
Outer sheath

Outer sheath

PE
CPR class

CPR class

Fca

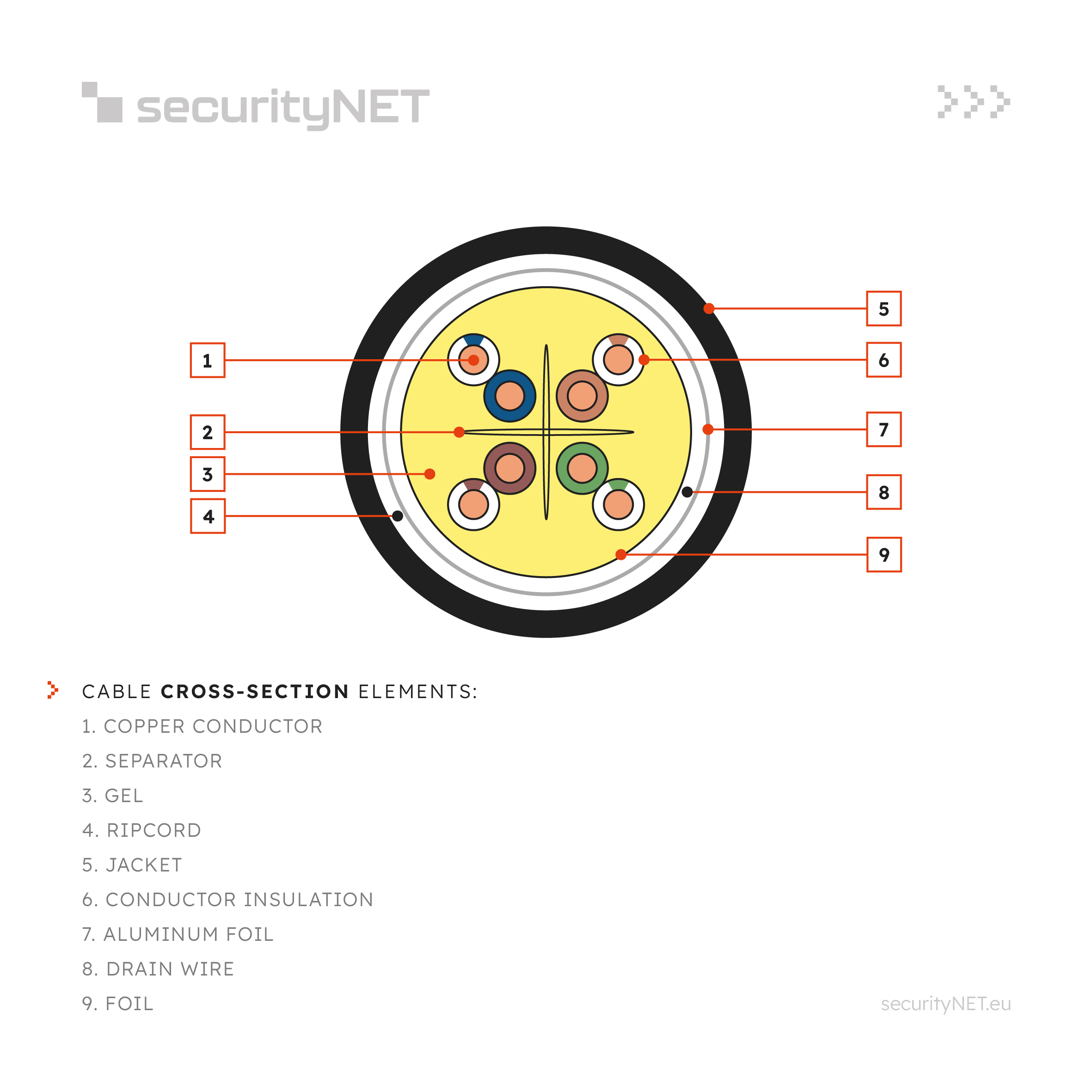

Cable construction

Cable construction

4x2
Bend radius at installation

Bend radius at installation

60mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

65%
Linear Resistance (max.)

Linear Resistance (max.)

9,5 (Ω/100m)
Pair separator

Pair separator

yes
Operating temperature

Operating temperature

from -30°C to 60°C
Installation temperature

Installation temperature

from -5°C to 60°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 9005
RoHS

RoHS

yes
