securityNET installation twisted-pair cable is designed for connections between multimedia signal distribution points and user connection sockets. The F/UTP (shielded) twisted-pair cable is suitable for installation in computer networks, telephone networks, CCTV systems, etc., which are exposed to electromagnetic 1 interference. It has a PE outer jacket that protects it from damage resulting from external conditions. The cable meets the requirements of structured cabling standards: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.
Tested and proven quality
Optimal choice for outdoor applications
Wide range of application
Resistant to damage
A dependable network you can trust
The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.
Polyethylene jacket for outdoor installation

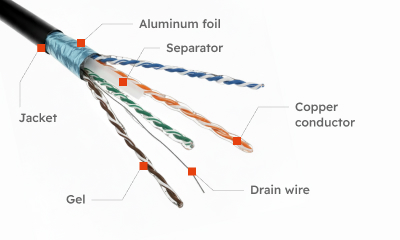

The polyethylene (PE) jacket is designed for outdoor installations, providing superior resistance to UV radiation, extreme temperatures, and high humidity. securityNET cables, distinguished by their black color, offer enhanced mechanical protection compared to standard installation cables. The gel-filled construction makes them suitable for direct burial.
|
Outer diameter |
7,8mm
|
|
Category/class |
6 (E class)
|
|
Shielding |
F/UTP
|
|
Copper conductor thickness/AWG |
0,565mm/AWG23
|
|
Wires |
solid wire
|
|
Conductors |
copper
|
|
Conductor insulation |
HDPE 1,12mm
|
|
Coating thickness |
0,6mm
|
|
Outer sheath |
PE
|
|
CPR class |
Fca
|
|
Cable construction |
4x2
|
|
Bend radius at installation |
63mm
|
|
Impedance |
100Ω
|
|
Delay Skew |
≤45
|
|
Nominal propagation velocity (NVP) |
65%
|
|
Linear Resistance (max.) |
9,5 (Ω/100m)
|
|
Pair separator |
yes
|
|
Operating temperature |
from -30°C to 60°C
|
|
Installation temperature |
from -10°C to 70°C
|
|
Quantity per package |
500m
|
|
Insulation color |
RAL 9005
|
|
RoHS |
yes
|
Declaration of conformity for securityNET cat. 6 cables
DOP_SEC6FTPG-012-01
Data sheet SEC6FTPG
