securityNET F/UTP category 6 PE outdoor dry cable 500m

SecurityNET installation twisted-pair cable is designed to make connections between distribution points for multimedia signals and users’ connection outlets. /UTP (shielded) twisted-pair cable is suitable for installations in computer networks, telephone systems, CCTV, and similar applications that are susceptible to electromagnetic interference. It has a PE outer coating that protects it from damage due to external conditions. The cable meets the requirements of structured cabling standards: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

Polyethylene jacket for outdoor installation

The PE (polyethylene) jacket is designed for cable installation in outdoor conditions, such as UV radiation, low and high temperatures, and increased humidity. SecurityNET cables, in their distinctive black color, are more resistant to mechanical damage compared to standard installation cables. The absence of filling indicates that the cable is suitable for aerial installation.

Technical specifications

	Outer diameter	7,4mm
	Category/class	6 (E class)
	Shielding	F/UTP
	Copper conductor thickness/AWG	0,55mm/AWG23
	Wires	solid wire
	Conductors	copper
	Conductor insulation	PE 1,10mm
	Coating thickness	0,6mm
	Outer sheath	PE
	CPR class	Fca

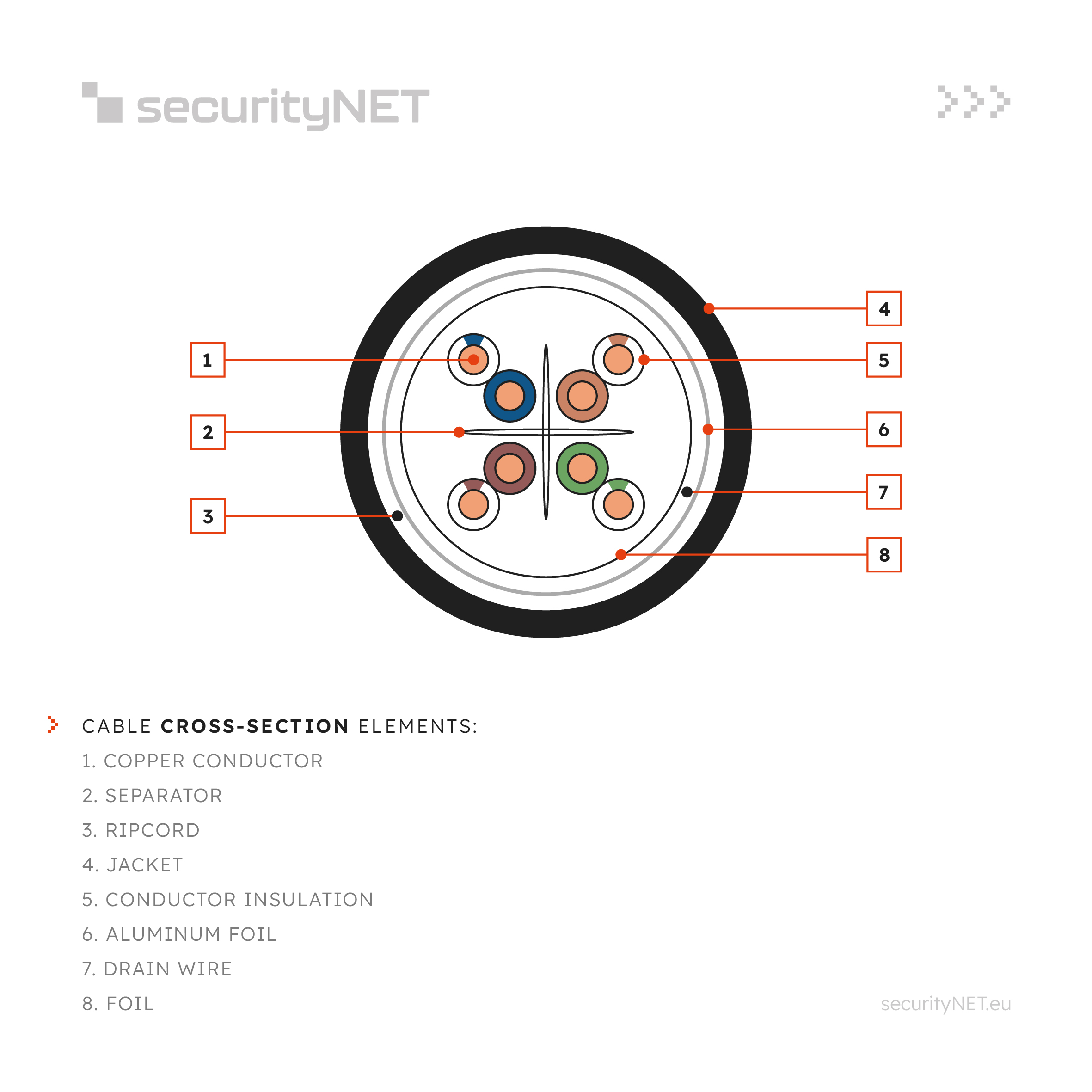

	Cable construction	4x2
	Bend radius at installation	60mm
	Impedance	100Ω
	Delay Skew	≤45
	Nominal propagation velocity (NVP)	68%
	Linear Resistance (max.)	9,5 (Ω/100m)
	Pair separator	yes
	Operating temperature	from -30°C to 60°C
	Installation temperature	from -5°C to 70°C
	Quantity per package	500m
	Insulation color	RAL 9005
	RoHS	yes
