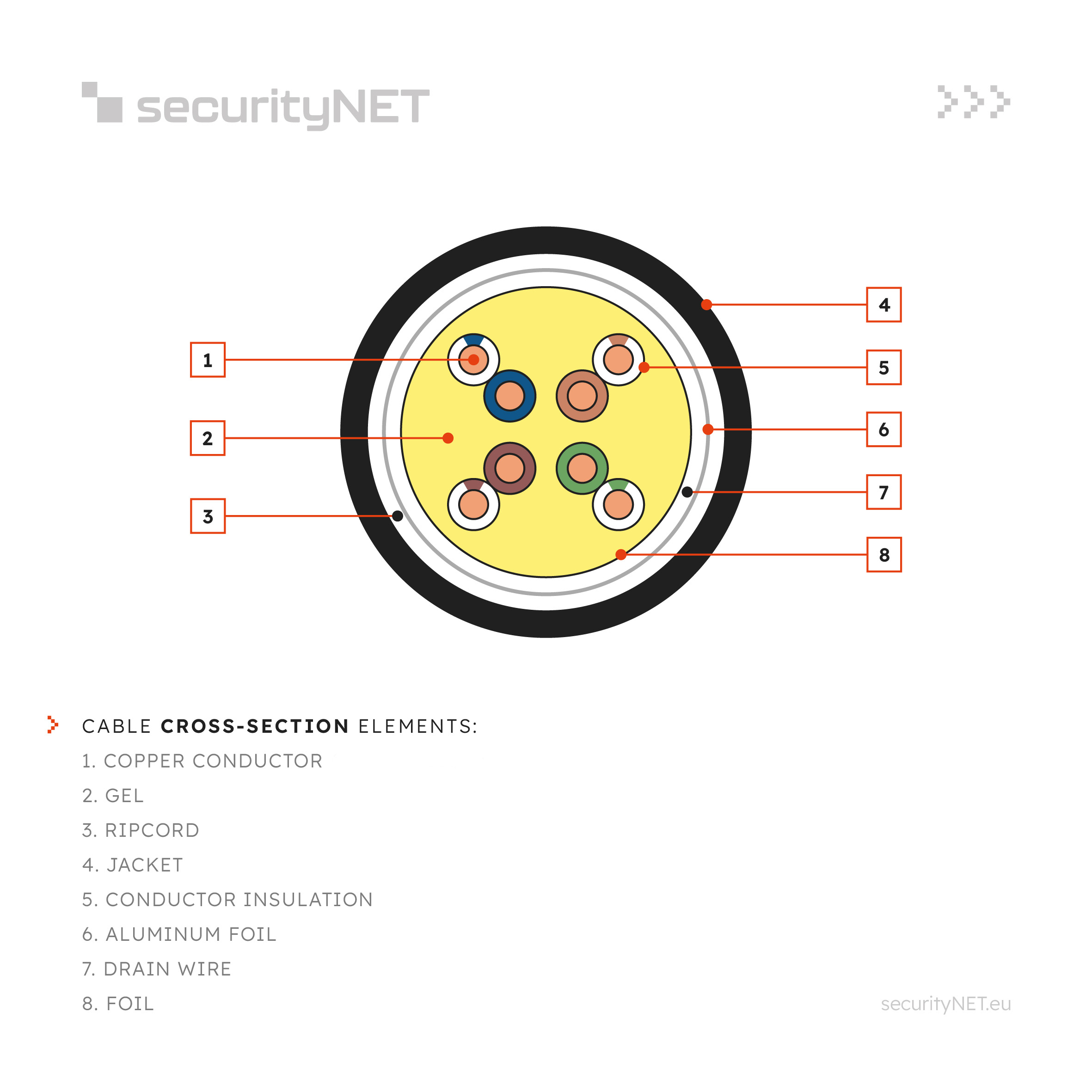

securityNET installation twisted pair cable is designed to connect multimedia signal distribution points to user connection points. The shielded twisted pair (F/UTP) cable is suitable for installation in computer, telephone, and CCTV networks that are susceptible to electromagnetic interference. It features a PE outer jacket for protection against external damage. The cable complies with structural cabling standards: ISO/IEC 11801, EN 50173, and EIA/TIA 568-C.2.
Tested and proven quality
The top choice for outdoor environments
Filled with gel for direct burial
Resistant to damage
A dependable network you can trust

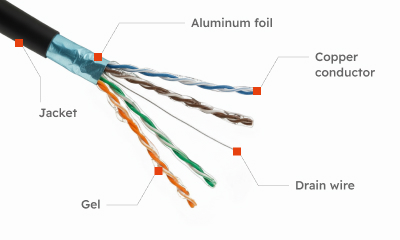

Experience unmatched durability with the securityNET twisted pair cable. Crafted from premium copper, it ensures long-lasting, reliable connections. Rigorously tested over 90 meters using a Fluke Networks DSX-8000, this cable is built to withstand the test of time. Ideal for demanding applications requiring superior performance.
PE jacket designed for external environments
Engineered for outdoor environments, the PE jacket protects cables from harsh conditions such as UV rays, extreme temperatures, and high humidity. securityNET cables, with their robust black jacket, offer superior mechanical protection compared to standard cables. Thethe gel filling is designed for underground installations.
|
Outer diameter |
6,6mm
|
|
Category/class |
5e (class D)
|
|
Shielding |
F/UTP
|
|
Copper conductor thickness/AWG |
0,51mm/AWG24
|
|
Wires |
solid wire
|
|
Conductor material |
100% copper
|
|
Conductor insulation |
HDPE, conductor diameter 1.02mm
|
|
Coating thickness |
0,55mm
|
|
Outer sheath |
PE
|
|
CPR class |
Fca
|
|
Cable construction |
4x2
|
|
Bend radius at installation |
53mm
|
|
Impedance |
100Ω
|
|
Delay Skew |
≤45
|
|
Nominal propagation velocity (NVP) |
65%
|
|
Linear Resistance (max.) |
9,5 (Ω/100m)
|
|
Pair sperator |
no
|
|
Operating temperature |
from -30°C to 60°C
|
|
Installation temperature |
from -10°C to 70°C
|
|
Quantity per package |
500m
|
|
Insulation color |
RAL 9005
|
|
RoHS |
yes
|
