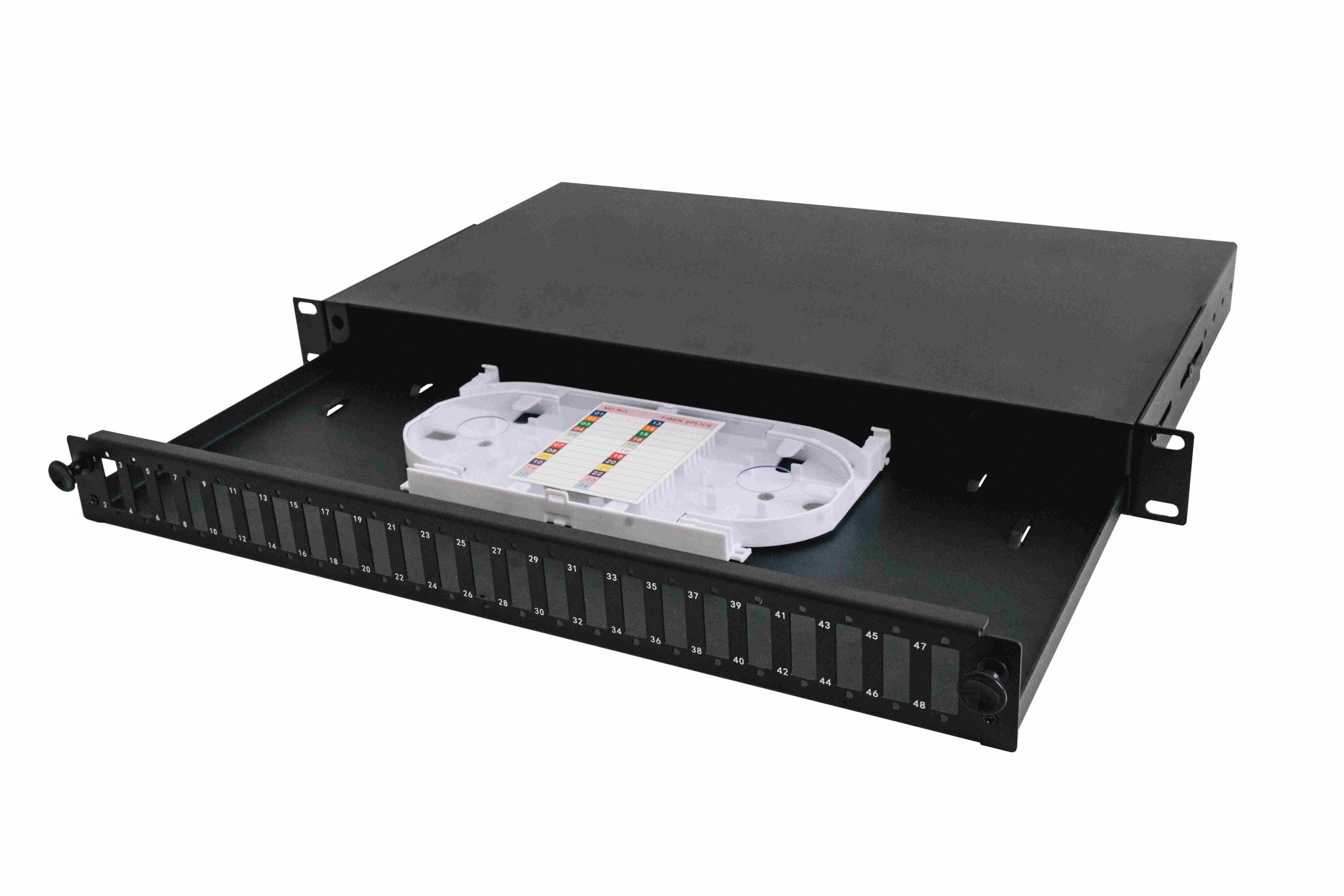

19″ fiber optic distribution panels are components of network infrastructure designed for installation in rack cabinets. They provide organized and secure connections for fiber optic cable fibers.

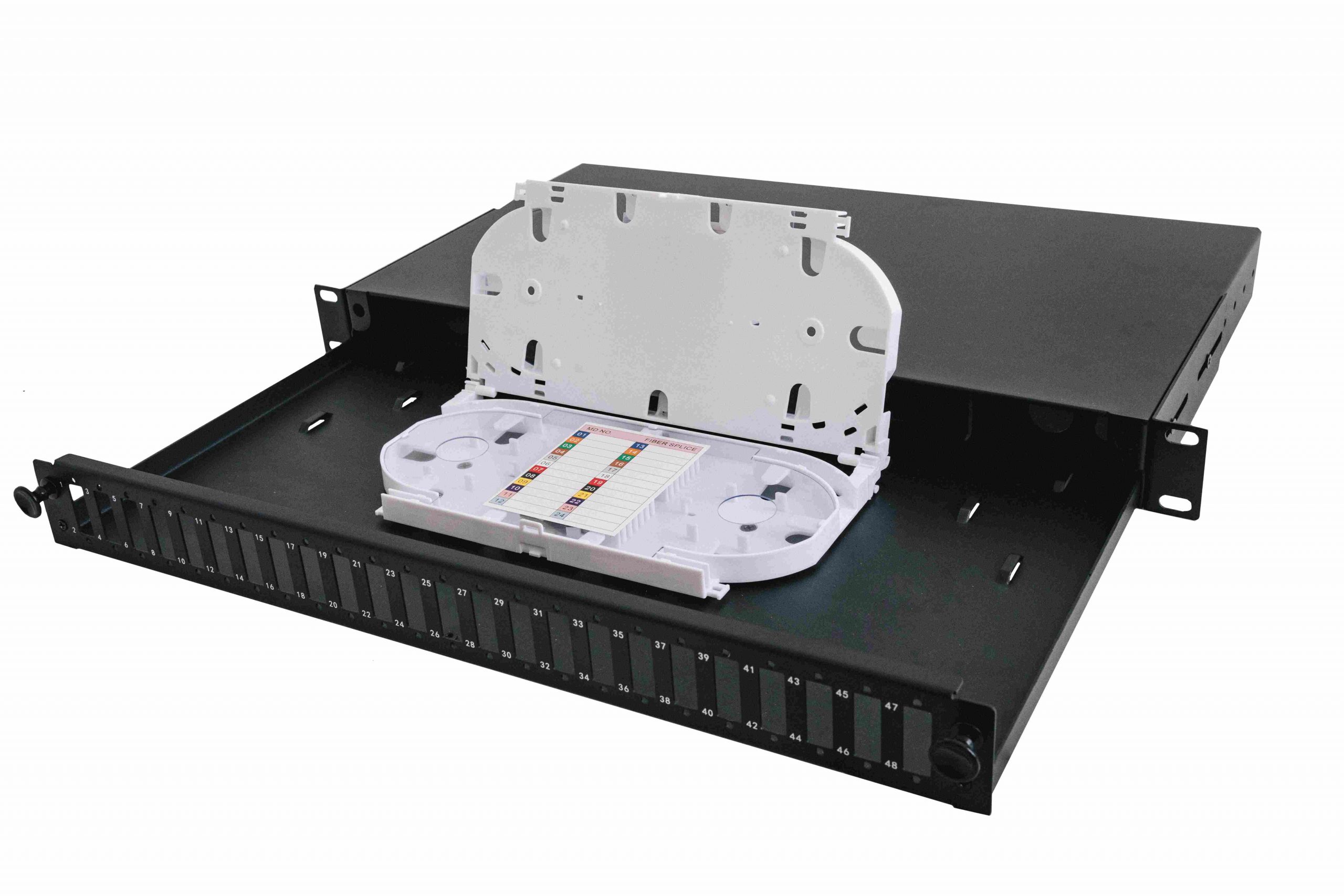

The panel is equipped with a 24-splice cassette, two PG 13.5 glands, fiber organization holders, cable ties, labels, and screws for adapter mounting.
High capacity and versatility
The panel design allows for installation of up to 48 fibers and supports various cable types, including central tube and multi-tube constructions. The panel is compatible with SC simplex, E2000, and LC duplex adapters. The set includes an SC-FL-01 splice tray, which supports up to 24 splices and can be expanded with an additional tray.
Robust construction and protection
The panel is made of metal and finished in black (RAL 9005), ensuring durability and a clean, professional appearance. Large clips on the front of the panel prevent accidental sliding out, while openings and holders allow fibers to be organized using standard cable ties.
|
Height |
1U
|
|
|
Front version |
24 x SC simplex/LC duplex/E2000
|
|
|
Number of adapters (max) |
24
|
|
|
Color |
black (RAL 9005)
|
|
|
Dimensions |
1U / 19" / 252 mm (depth)
|
|
|
Material |
metal
|
