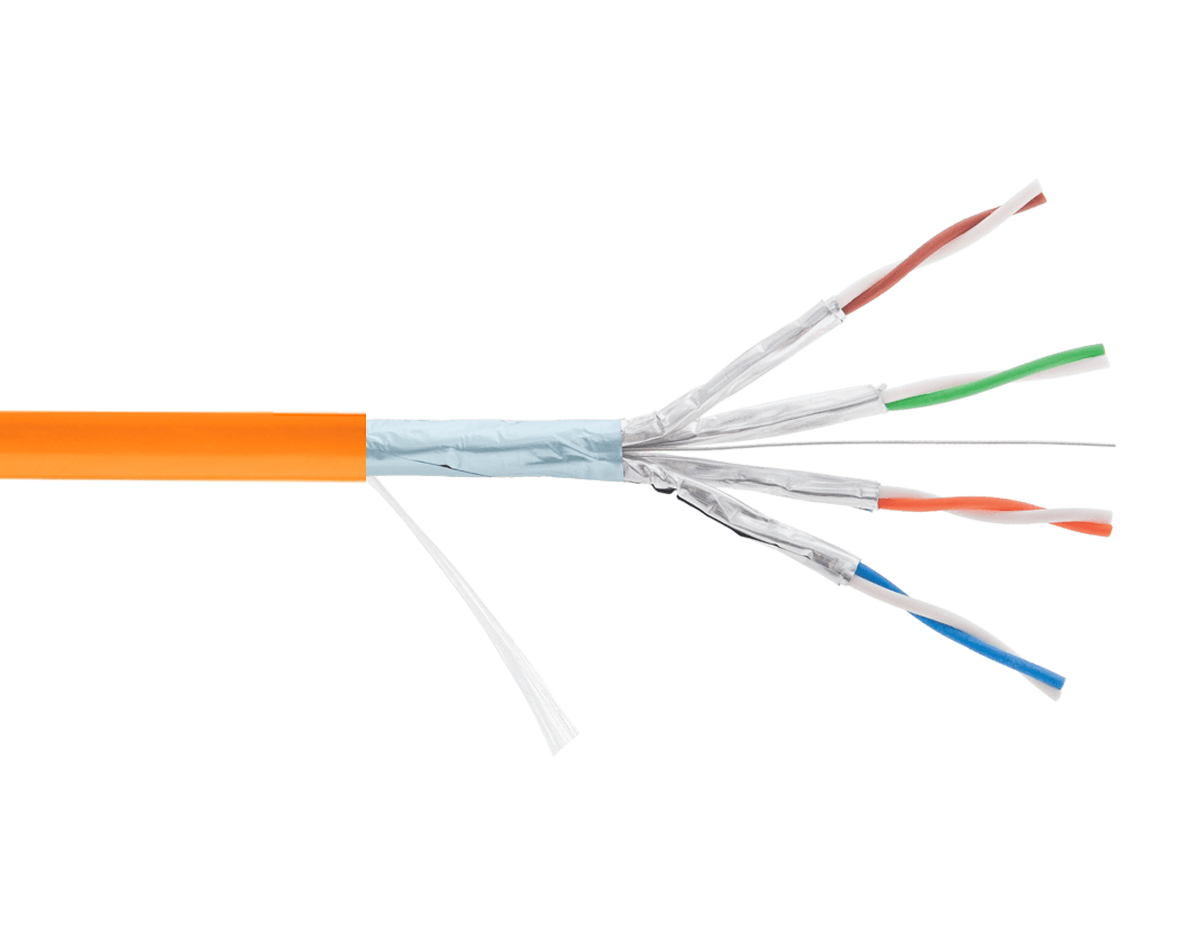

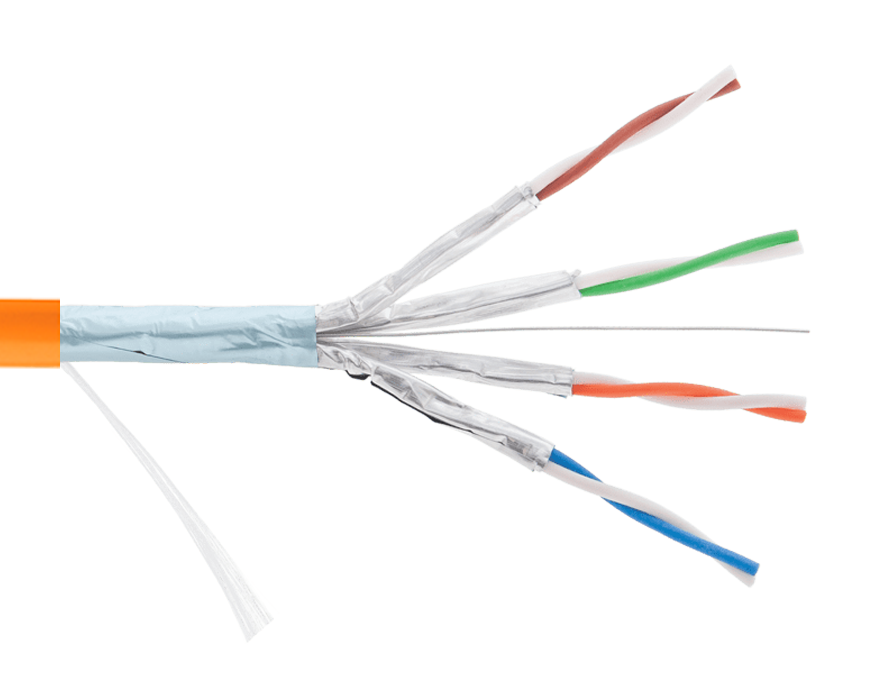

securityNET cable F/FTP cat. 6A LSZH B2ca 500m

The securityNET installation twisted-pair cable is designed for making connections between multimedia signal distribution points and user connection outlets. F/FTP (foiled/foiled twisted pair) shielded twisted-pair cable is an essential component for installations in computer networks, telephone systems, CCTV systems, etc., that are exposed to electromagnetic interference. It has an LSZH B2ca outer coating. The cable meets the requirements specified by structured cabling standards: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2.

securityNET cable F/FTP cat. 6A LSZH B2ca 500m

Low smoke, zero halogen (LSZH) jacket for enhanced safety

Compliant with EU CPR regulations, our LSZH (Low Smoke Zero Halogen) cables offer enhanced safety by minimizing fire hazards and toxic emissions. In the event of a fire, these cables significantly reduce the spread of flames and generate minimal smoke and harmful fumes, protecting building occupants and facilitating safe evacuation. securityNET provides a comprehensive range of LSZH cables, designed to meet the specific requirements of your project, ensuring both safety and compliance.



securityNET cable F/FTP cat. 6A LSZH B2ca 500m

A dependable network you can trust

The securityNET twisted pair cable is made of the highest quality copper, making it the optimal choice for building connections designed to last for years. It has undergone rigorous strength tests over a 90-meter length using a Fluke Networks DSX-8000 meter. Therefore, if you are seeking materials with exceptional durability, this is an excellent option.

Technical specifications

Outer diameter

Outer diameter

7,4mm
Category/class

Category/class

6A (Ea class)
Shielding

Shielding

F/FTP
Copper conductor thickness/AWG

Copper conductor thickness/AWG

0,56mm/AWG23
Wires

Wires

solid wire
Conductors

Conductors

copper
Conductor insulation

Conductor insulation

PE 1,35mm
Coating thickness

Coating thickness

0,5mm
Outer sheath

Outer sheath

LSZH
CPR class

CPR class

B2ca

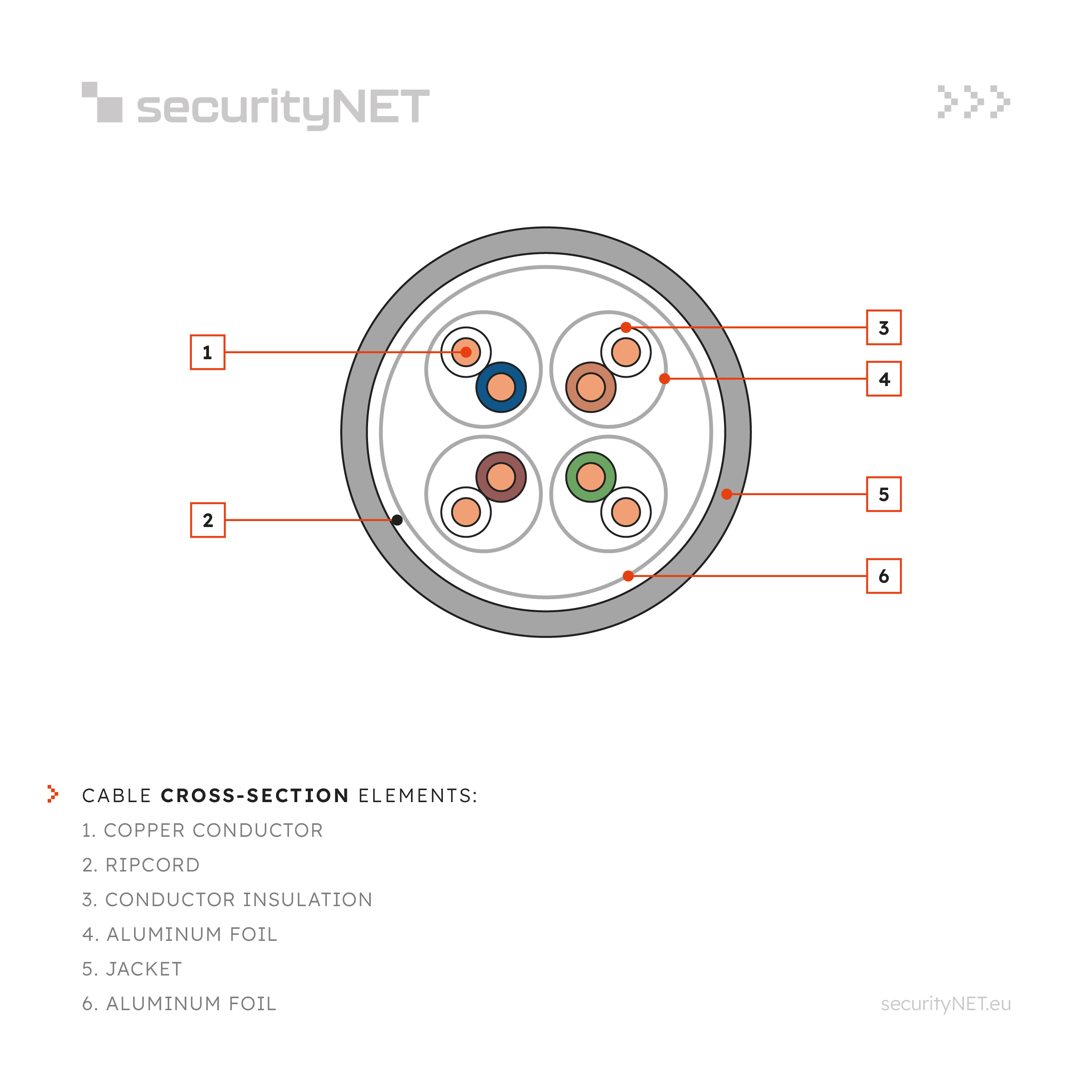

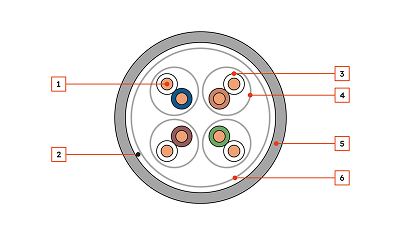

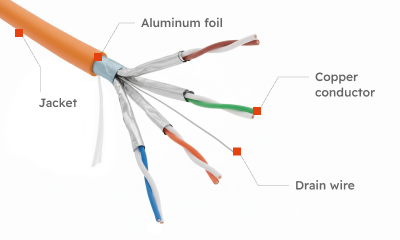

Cable construction

Cable construction

4x2
Bend radius at installation

Bend radius at installation

60mm
Impedance

Impedance

100Ω
Delay Skew

Delay Skew

≤45
Nominal propagation velocity (NVP)

Nominal propagation velocity (NVP)

74%
Linear Resistance (max.)

Linear Resistance (max.)

9,5 (Ω/100m)
Pair separator

Pair separator

not
Operating temperature

Operating temperature

from -20°C to 70°C
Installation temperature

Installation temperature

from -5°C to 60°C
Quantity per package

Quantity per package

500m
Insulation color

Insulation color

RAL 2004
RoHS

RoHS

yes
